Analysis Software

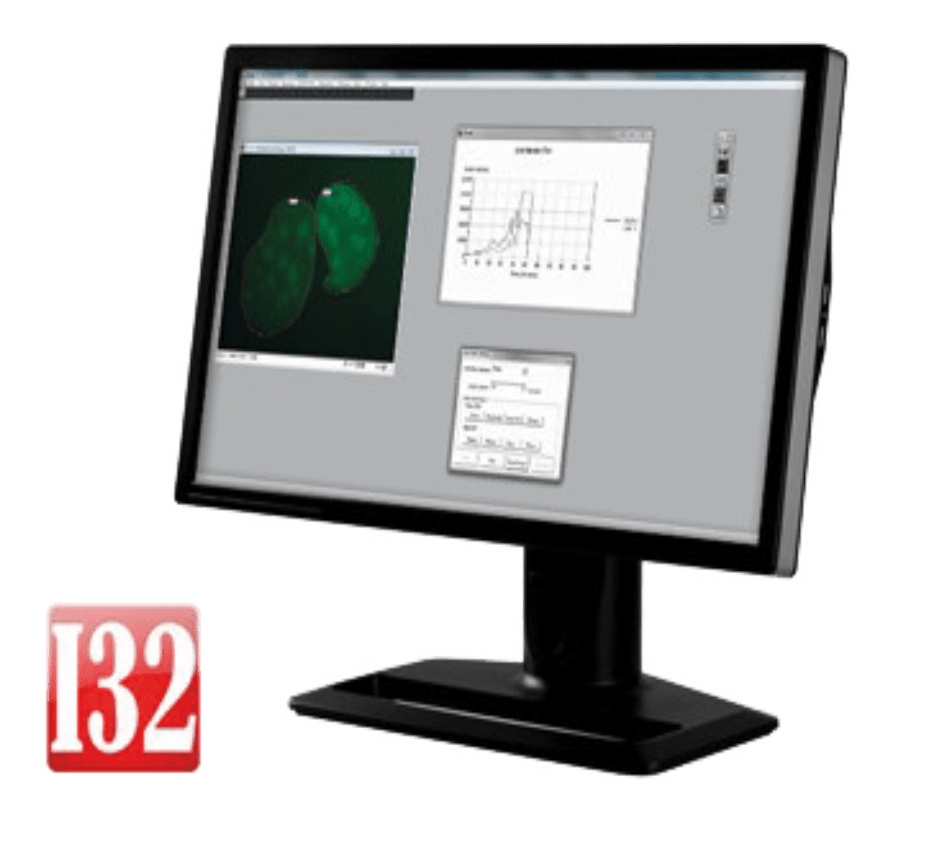

The Image32 image processing and data acquisition software is a 32 bit Windows application designed to analyse data from Photek camera systems.
More information on our Image 32 Software can be found on our YouTube channel.
The Image32 image processing and data acquisition software is a 32 bit Windows application designed to analyse data from Photek camera systems.
More information on our Image 32 Software can be found on our YouTube channel.
Request a Quote Ask a Question
- Overview
-
CAMERA SYSTEMS
- HRPCS Photon Counting
- IPD Photon Counting
- iCMOS 160
- Analysis Software
- Accessories
- Custom Design
-
NEUTRON IMAGING
- N-Cam
-
VELOCITY MAP IMAGING
- Velocitas VMI
Features
- The IFS32 image processing and data acquisition software is a 32 bit Windows application.
- Up to 26 image buffers (designations labelled A to Z).
- Images may be either 8 bit, 16 bit, 32 bit, floating point or colour format.
- Each designated image buffer may be either a single image or a sequence of images.
- The number of images in a sequence is limited by hard disk and memory capacity.
- A simple and consistent “point and click” style user interface.
- A range of powerful image processing and data extraction and graphing routines.
- Image processing functions may operate between images or between images and constants.
- A simple “learn and recite” macro system allows sequences of operations to be memorised and replayed.
- User definable toolboxes provide quick access to complex functions.
- Hardware drivers for HRPCS photon counting, IPD photon counting and video frame grabbers.
- “Developers Code” modules may be developed using Microsoft C++ and seamlessly integrated into the main image program.
Available Functions
- Constant Operations: Add, Subtract, Multiply, Divide, AND, OR, XOR, NOT, Clip High and Clip Low
- Image Operations: Add, Subtract, Multiply, Divide, AND, OR, XOR, Negate and Average
- Image Enhancement: Smooth, Sharpen, Threshold,
- Contrast Stretch, Erode, Dilate
- Image Orientation: Mirror LR, Mirror TB, Rotate 90, Rotate 180,
- Rotate 270, Rotate
- Copy: To 8 Bit, 16 bit, 32 bit or to Floating Point
- Sizing: Enlarge, Reduce, Crop Area
- Measure: Pixel, Line Profile, Area Profile,
- Circumference, Calibration
- Presentation: Join, Split, Matrix
- Colour Palettes: Various colour and grey scale palettes
- Odd Area Set Analysis: Rectangle, Circle, Trapezoid, Freehand
- Statistical Reports: Max, Mean Total, Standard Deviation
- Macro Language: Record and replay sequences of operations.
- Annotation: Annotate Images with text and arrows.
- Printing: Printer support is via MS Windows.
- File Format: PCX, BMP, TXT, BIN, PCT, SEQ
