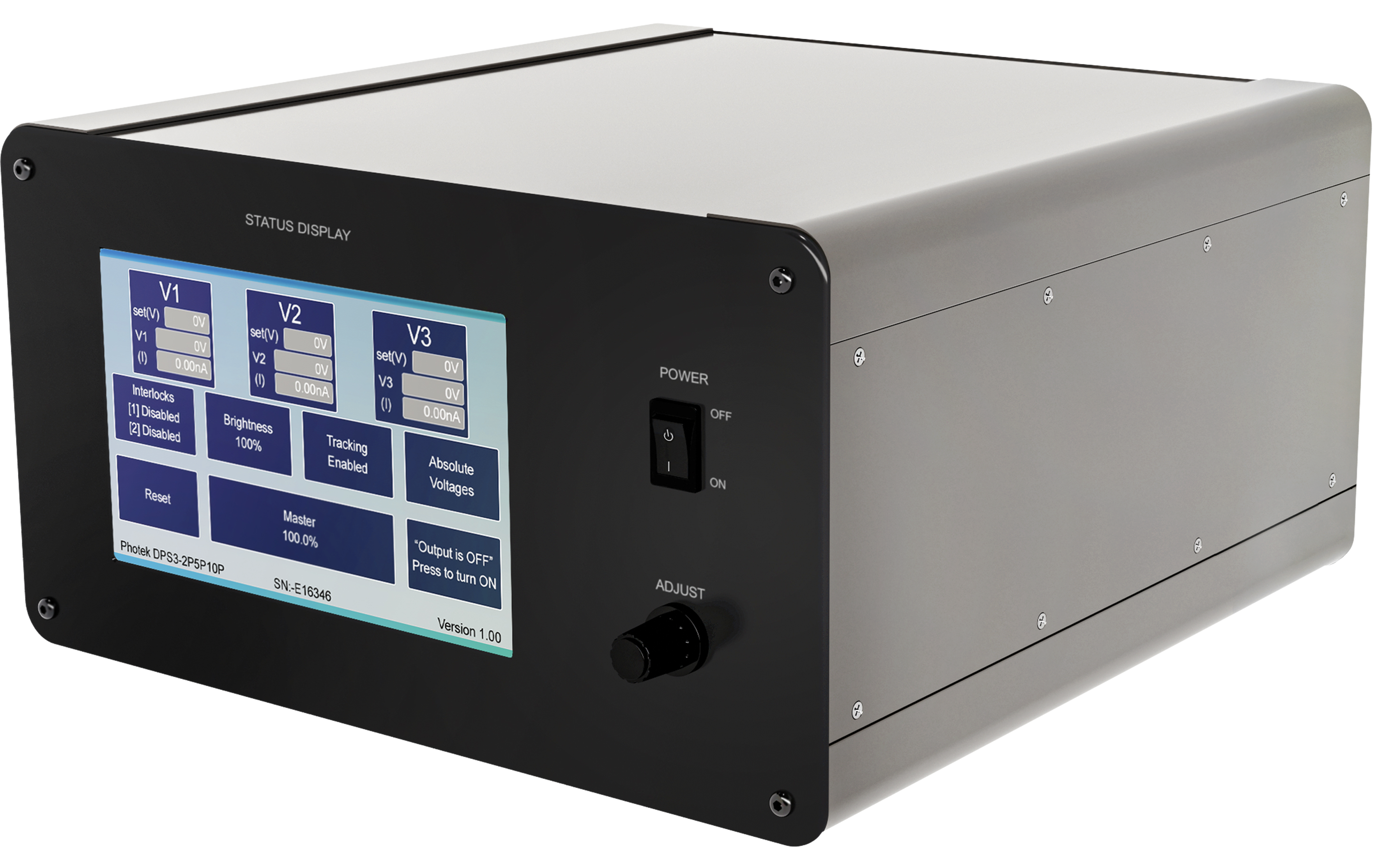

Photek’s bench-top power supplies come with one to four outputs. The DPS1 is designed for detectors that use an integral voltage divider network to provide individual bias voltages and have electronic anodes rather than phosphor screens. The DPS2, DPS3 and DPS4 are designed for use with phosphor screen image intensifiers having either a single or multiple MCPs respectively.

The BPS1-25P can be used for Magnetic Focus Image Intensifiers. All of the bench top supplies are fully compatible with Photek’s family of gate modules. Contact Photek for power supplies with additional outputs or for alternative voltage configurations.

Applications	DPS1	DPS2	DPS3	DPS4	BPS1-25P
MCP's	1 - 3	1	1-3	1-4	0
Image Intensifier	No	Yes	Yes	Yes	No
Image Photon Detector	Yes	No	No	No	No
Photo-Multiplier Tube	Yes	No	No	No	No
Demagnifier II	No	No	No	No	No
Magnetic Focus II	No	No	No	No	No

Specifications

SPECIFICATIONS

Specifications
Current Monitor	Yes	Yes	Yes	Yes	No	No
Computer Interface	Yes	Yes	Yes	Yes	Yes	No
Output 1: Voltage	Option	Option	Option	Option	+1000 V (UF1)	+25000 V
Output 2: Voltage		Option	Option	Option	+1000 V (UF2)
Output 3: Voltage			Option	Option	+10000 V (UM)
Output 4: Voltage				Option	+10000 V (SCR)
Depth	290 mm	258 mm	258 mm	258 mm	260 mm	340 mm
Width	155 mm	265 mm	265 mm	265 mm	280 mm	260 mm
Height	100 mm	110 mm	110 mm	110 mm	116 mm	120 mm
Weight	2.2kg	<7kg	<7kg	<7kg	2.5kg	3kg
Supply Voltage	90 – 260 VAC 50/60 Hz

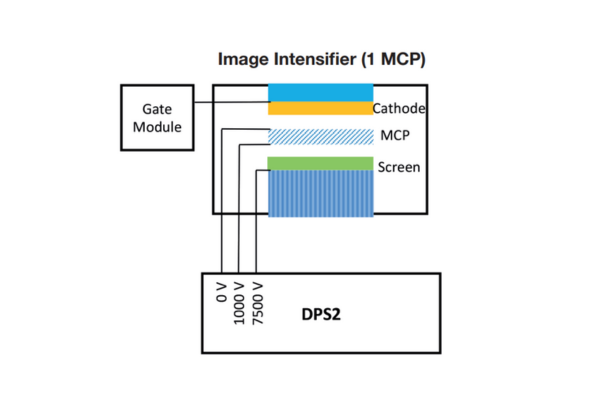

Figure 1: The DPS2 can be used for single MCP Image Intensifiers with an appropriate gate module.

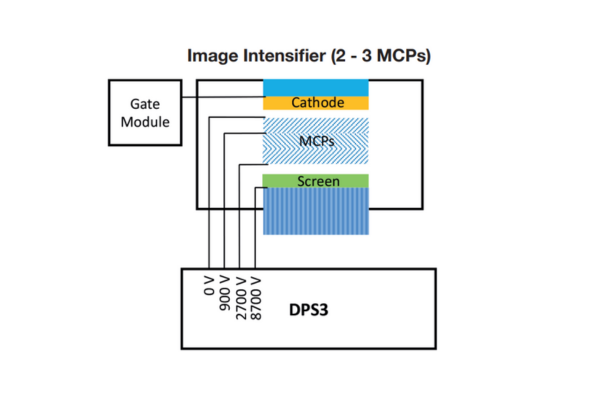

Figure 3: The DPS1 is used for all PHOTON Imagers having non-phosphor anodes, including the Image Photon Detector. Typically these anodes are required to operate at or near ground, requiring the use of negative high voltage and a voltage diver network provided with the detector.
