Features
Up to four independently controlled groups of LEDs
Configurable with a wide range of wavelength options
Large illumination area
50mm x 90mm
Computer control via easy to use RS485 serial interface
or use Photek's Image32 software with integral LB3 light box control
Multiple LB3 light boxes can be controlled simultaneously
Product Overview

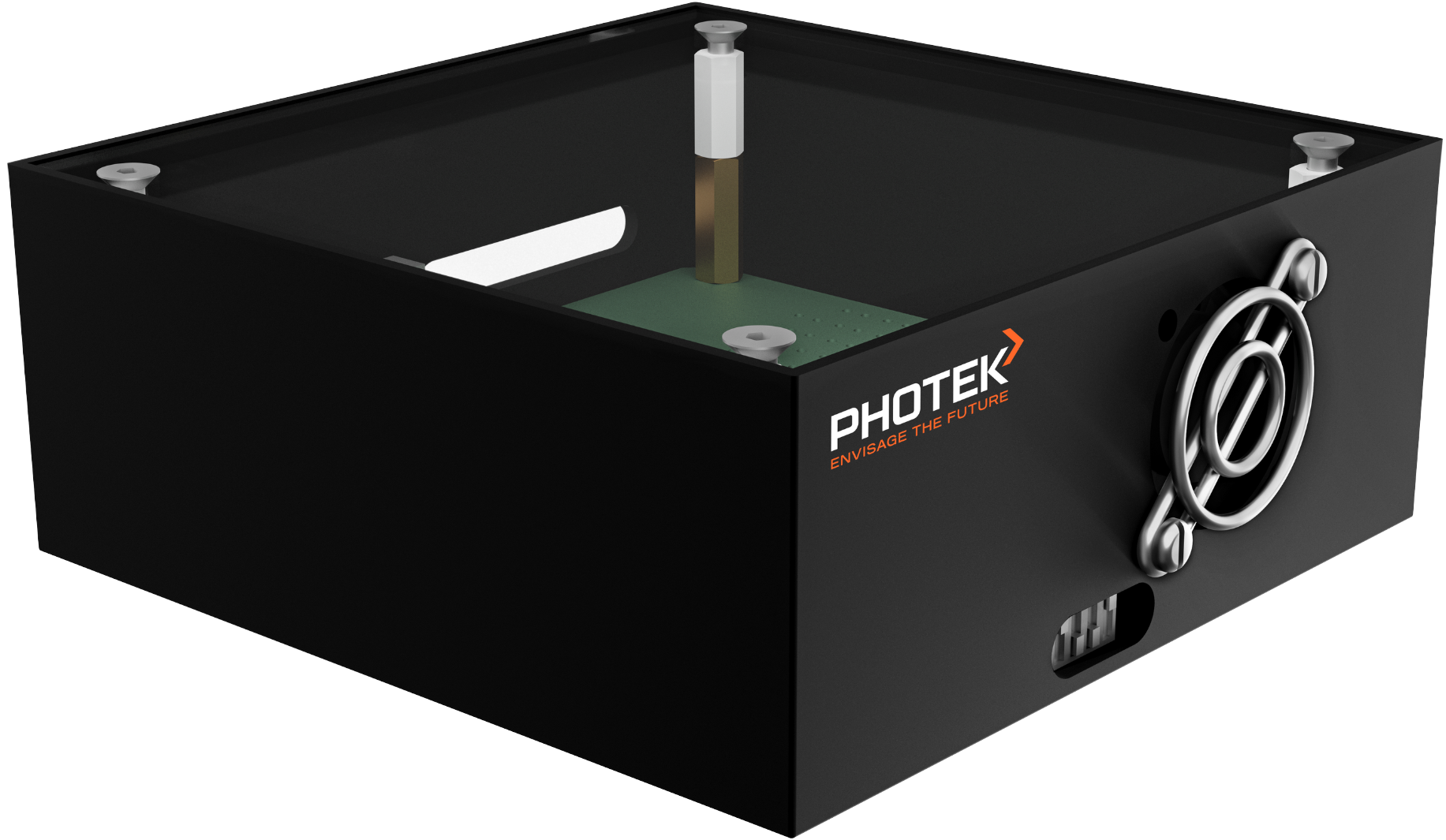

The LB3 Light Box is a computer controlled, multi-wavelength LED light source perfect for bright field illumination of a life science sample or as a fixed wavelength light source.
Each LB3 has up to 4 independent channels allowing individual intensity control of up to 4 different wavelengths of LED. The colour/wavelength may be chosen to suit the customers’ application, with custom wavelength options available.
The LB3 unit is a lightweight, high intensity light source, designed to be a moveable light source inside an intensified camera system dark box. For units supplied with a Photek camera system control functions are integrated into Photek’s Image32 software.
Multiple LB3 units may be connected to one USB-to-RS485 line which allows for independent control of each light box or global control of specific wavelength intensity.
Specifications
Independent Channels | 1 to 4 |
Light Area | 50 mm x 90 mm |
Wavelengths Available | Blue, Green, Yellow, Red, White (Specific wavelengths available upon request) |
Interface | RS485 (USB connector) |
Number of LB3 per RS485 line | 1 to 16 |
Power Supply Voltage | +12 V |
Current (max) | 1.4 A |
Length x Width x Height | 100 x 100 x 42 mm |
Weight | ~200 g |
Operating Temperature | 0ºC to 30ºC |

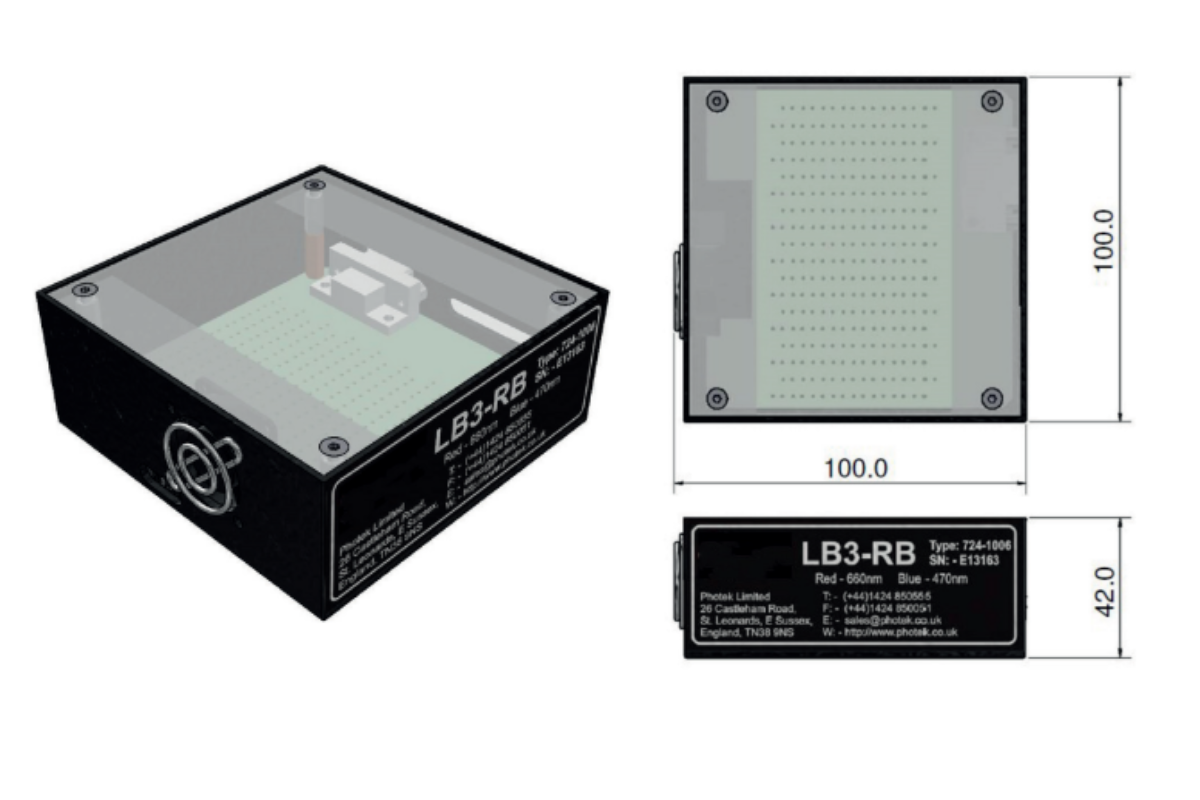

Outline Drawings
