Product Overview

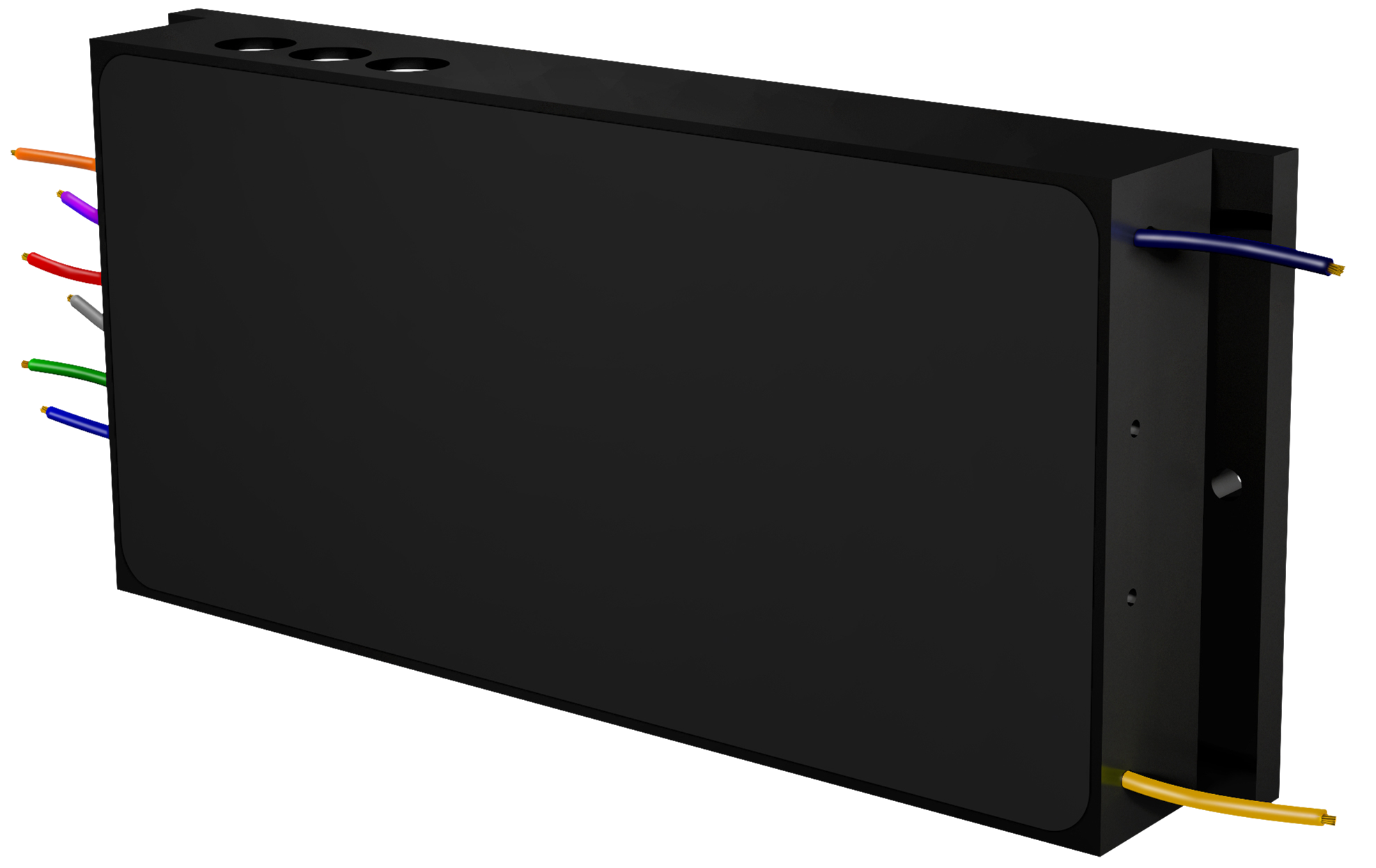

This family of flat-pack power supplies are specifically designed for Image Intensifiers providing all necessary voltages for operation. MCP voltage can be remotely adjusted using a separate 0 to 5V input.
Adjustment pots are provided to set the minimum and maximum MCP voltages and to adjust the Anode voltage to a fixed value over its 1000V to 6000V range. The FP61X variants support Image Intensifiers with a single MCP while the FP63X variants can be used for Intensifiers with up to 3 MCPs.
For gated applications the FP6X0 variants require a separate photocathode voltage, typically provided by one of Photek’s Gate Modules. If no gating is require a fixed -200 V photocathode voltage is supplied by the FP6X2 variants.
Contact Photek for additional voltages and customised solutions.
Specifications
Specifications | FP610 | FP612 | FP630 | FP632 |
MCP’s | 1 | 1 | 2-3 | 2-3 |
Cathode Voltage | n/a | -200 V | n/a | -200 V |
Cathode Impedance | n/a | 2 GΩ | n/a | 2 GΩ |
MCP In Voltage | 0V | 0V | 0V | 0V |
MCP Out Voltage | 100 – 1000 V | 100 – 1000 V | 100 – 2800 V | 100 – 2800 V |
MCP Load (min) | 10 MΩ | 10 MΩ | 50 MΩ | 50 MΩ |
Anode Voltage | 1000 – 6000 V | 1000 – 6000 V | 1000 – 6000 V | 1000 – 6000 V |
Anode Current (max) | 1 μA | 1 μA | 1 μA | 1 μA |
Current Monitor Output | Yes | Yes | No | No |
Supply Current | 5V DC ±5% | 5V DC ±5% | 5V DC ±5% | 5V DC ±5% |

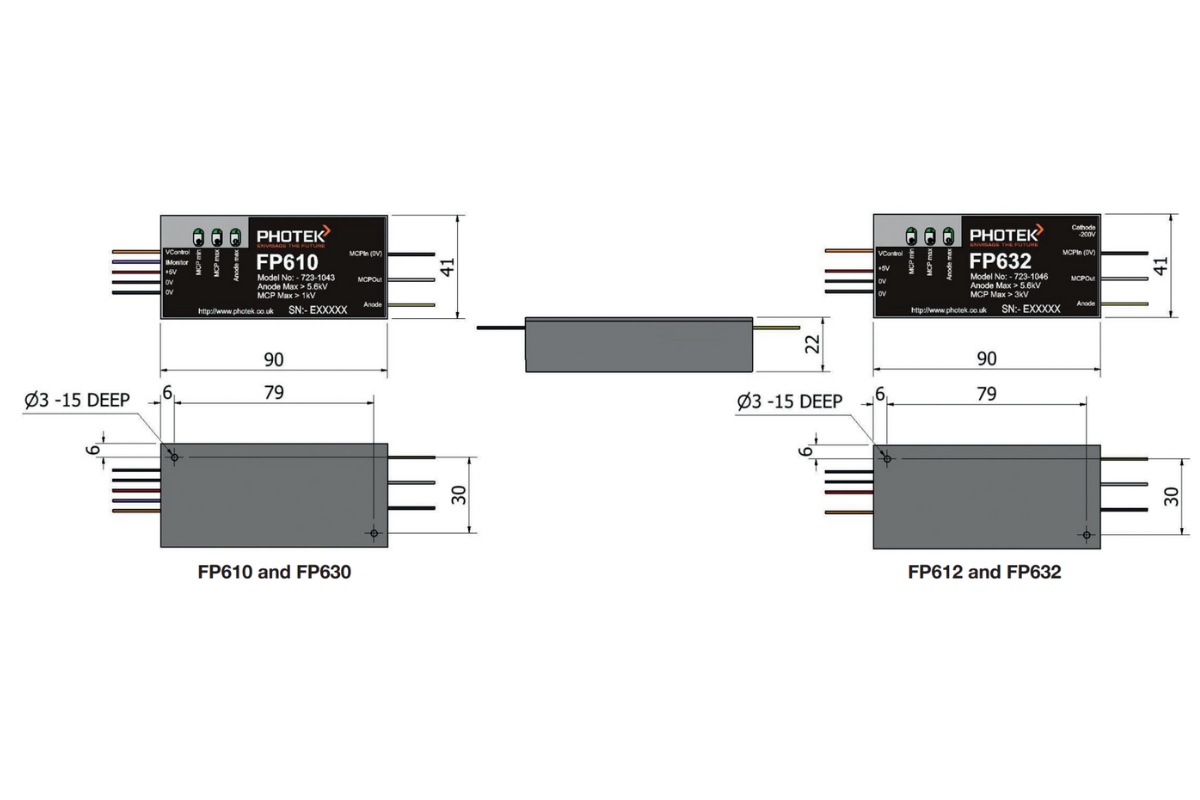

Length x Height x Width | 90 x 40 x 20 mm | 90 x 40 x 20 mm | 90 x 40 x 20 mm | 90 x 40 x 20 mm |
Weight | < 90 g | < 90 g | < 90 g | < 90 g |
Operating Temperature Range | 0ºC – 50ºC | 0ºC – 50ºC | 0ºC – 50ºC | 0ºC – 50ºC |
