Features
Two independent interlock inputs
to shut-off high voltage in case of an unsafe condition
Front-panel display and pushbutton controls
for manual set-up and adjustment
Gate Monitor Output provides a TTL indication of the Gate status, factory calibrated
when provided with a Gate Module
Power Supply and Gate Module power outputs
Three TTL trigger inputs can be individually enabled
to initiate the gate trigger in place of the internal gate source
Image Intensifier Gain Control output
can be used with power supplies with a gain control
±12 V and +5 V accessory power outputs
Overview

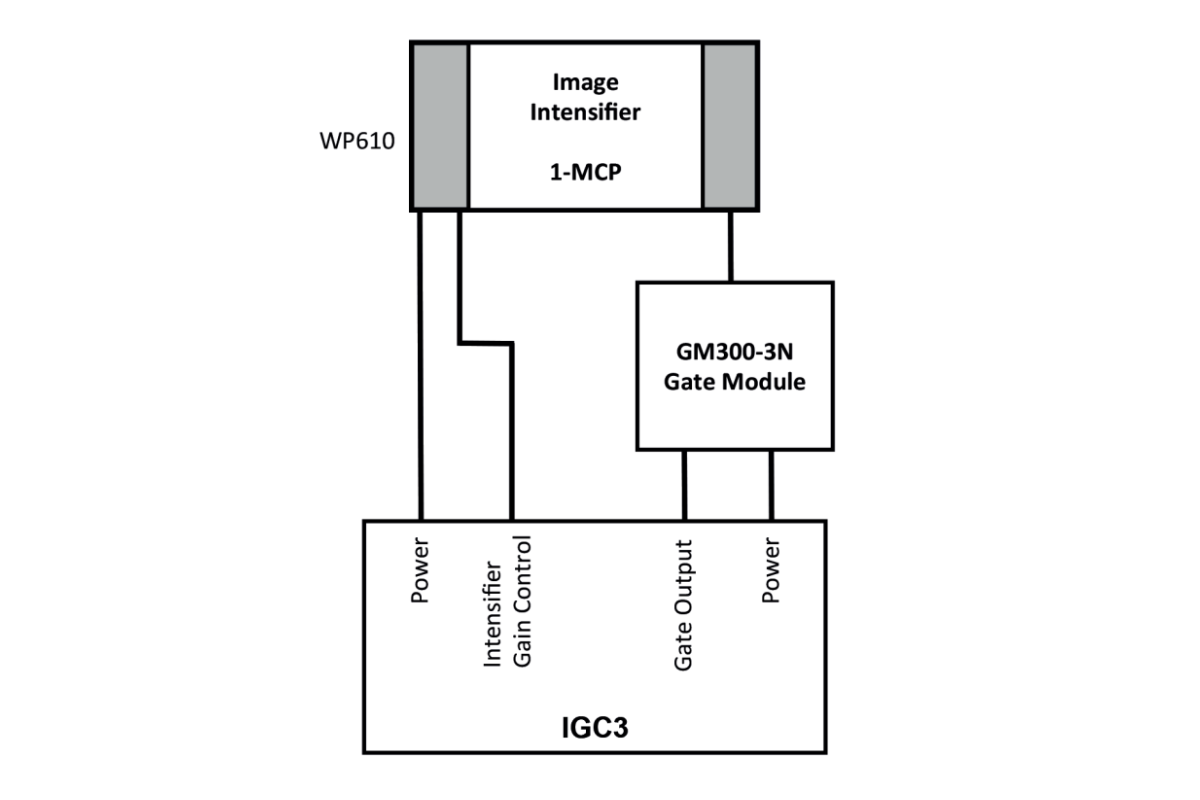

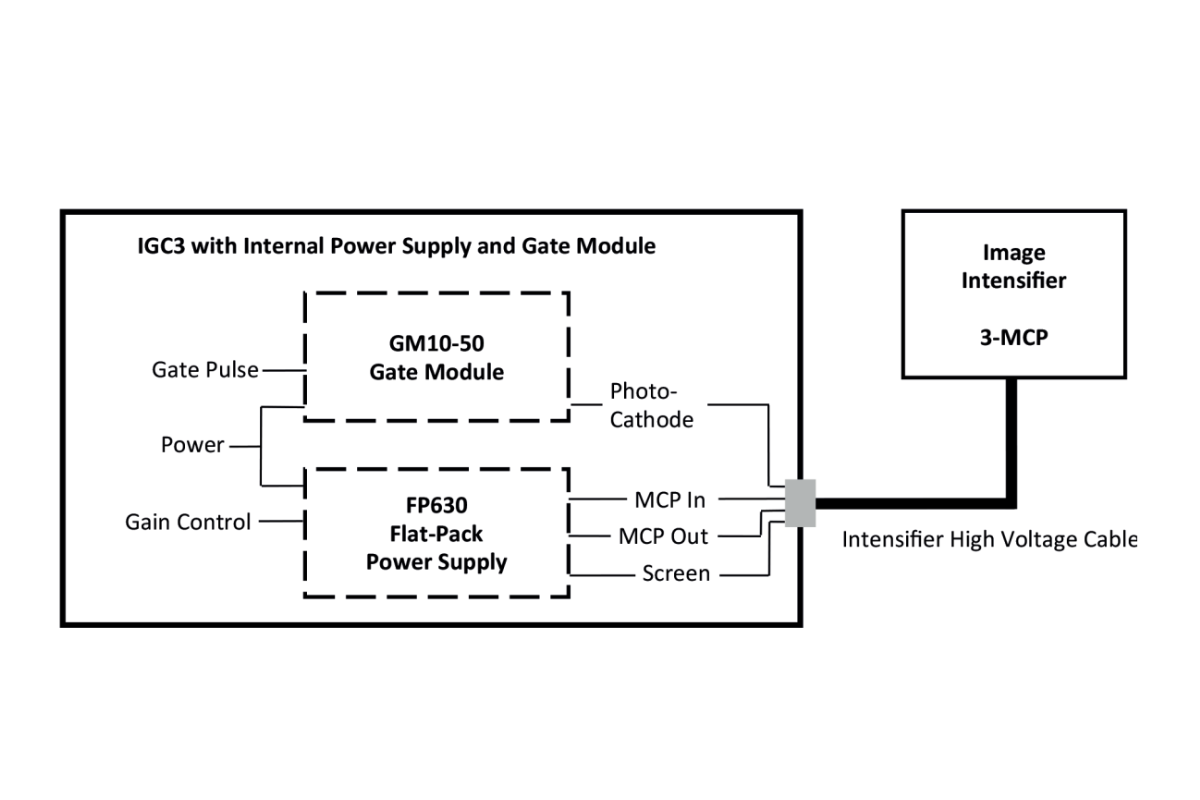

When combined with a high voltage power supply and gate module, the Gate Controller provides all functionality required to easily gate any of Photek’s Image Intensifiers and Image Photon Detectors.
No additional electronics are required. The IGC3 Gate Controller can be pre-configured by specialists at Photek to provide turn-key operation of your Image Intensifier based on the unique requirements of your application. The IGC3 trigger may be either internally generated or controlled by an external trigger and operates up to 1MHz however this will be limited by the Gate Module utilised.
Pulse widths are selectable from 3 ns to 40 ms, and can be set for either Gated ON or Gated OFF modes. Set-up is easy, with all functions available from either the front-panel user interface or via an integral RS232 computer interface.
Contact Photek technical support for help in configuring a customised solution.
Specifications
Min | |
Triggering Period | 1 ms to 40 ms |
Triggering Period Step Size | 20 ns |
Pulse Width AND Delay < 1 us Pulse Width Pulse Width Step Size Pulse Delay Pulse Delay Step Size Pulse Jitter (RMS) | 3 ns to 1 us 1 ns 160 ns to 1 us 1 ns 180 ps |
Pulse Width OR Delay > 1 us Pulse Width Loss Pulse Width Step Size Pulse Delay Pulse Delay Step Size Pulse Jitter (RMS) | 10 ns to 40 ms 5 ns 130 ns to 20 ms 5 ns 500 ps |
Gate Polarity | ON / OFF selectable |
Depth | 300 mm |
Width | 270 mm |
Height | 135 mm |
Weight | < 4 kg |
Supply Volatage | 90 – 260 VAC |
