Features
Integrated intensifier gating controller
for extremely short exposure times down to 5 ns at high frequencies
A wide range of intensifier options available
with sensitivities from UV to visible wavelengths, and multi or single photon counting options.
Easy to use touchscreen
for fast and simple adjustments to the intensifier and gating controller settings
Adaptable interface
with a range of lens mount and relay lens options available to suit your camera.
Applications
Combustion research
High-speed fluorescence imaging
Plasma diagnostics
Corona discharge imaging
Product Range

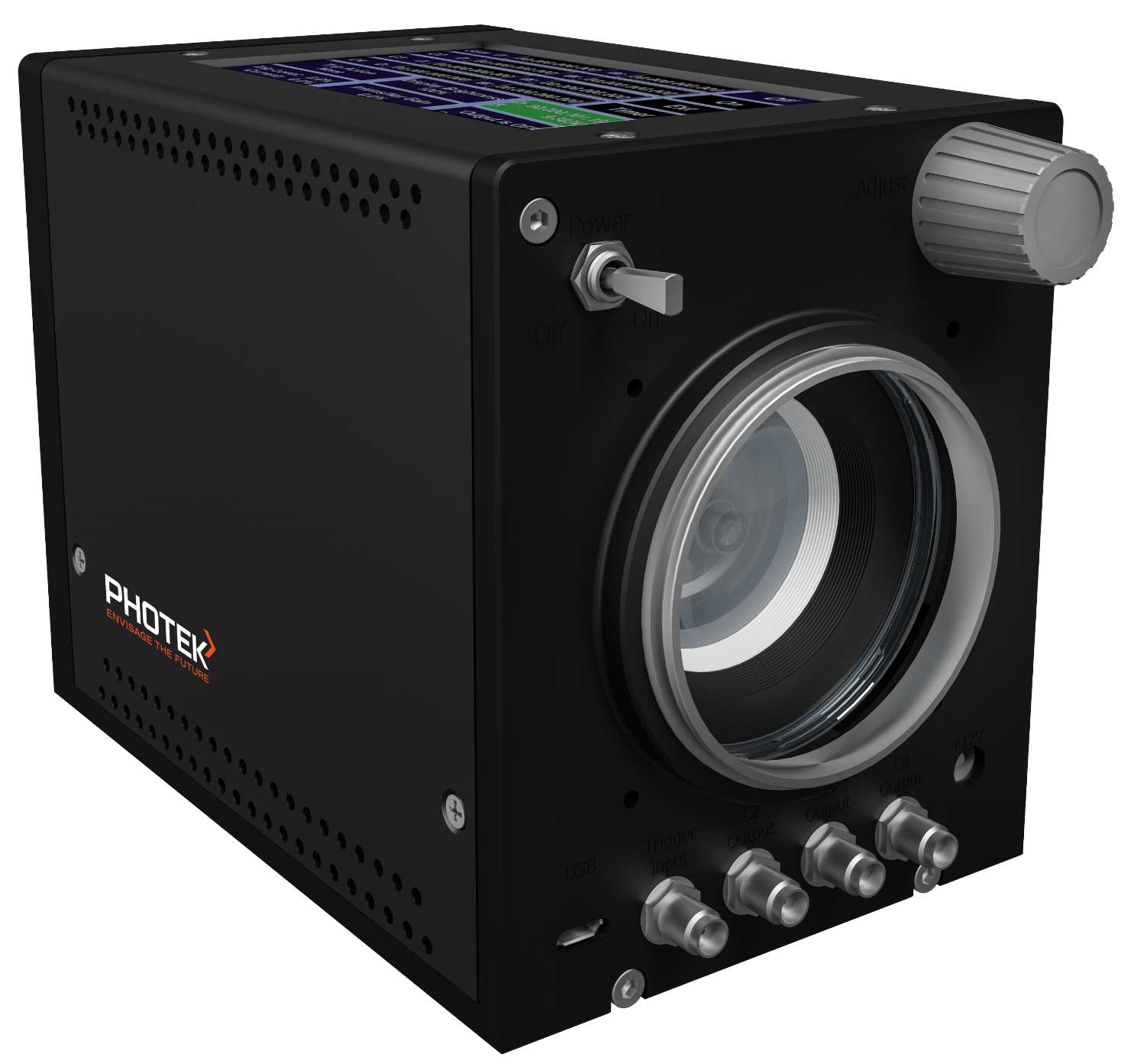

ILCI125: 25mm intensifier attachment with a single MCP for low light imaging
ILCI225: 25mm intensifier attachment with dual MCPs for photon counting applications
Specifications
Pulse Width Range | 5 ns to 10 s | |||
Pulse Width Step Size | 5 ns | |||
Pulse Delay Range | 50 ns to 2 s | |||
Pulse Delay Step Size | 5 ns | |||
Frequency Max. (Continuous) | 100 KHz | |||
Frequency (Burst mode for 1 m/s) | 100 MHz | |||
Pulse Jitter (RMS) | 180 ps | |||
Active Area Diameter | 25 mm | |
Input Window Material | Fused Silica or Fibre Optic | |
Photocathode | SB, Bialkali, S20, S25 | |
Phosphor (Decay time) | P43 (1 ms to 10%) or P46 (300 ns to 10%) | |
Depth x Width x Height | 267.3 x 96 x 115 mm | |||
Weight | 2 kg | |||
Power Supply Requirements | 12V @ 1A | |||
Photocathode Response
Dark Count
