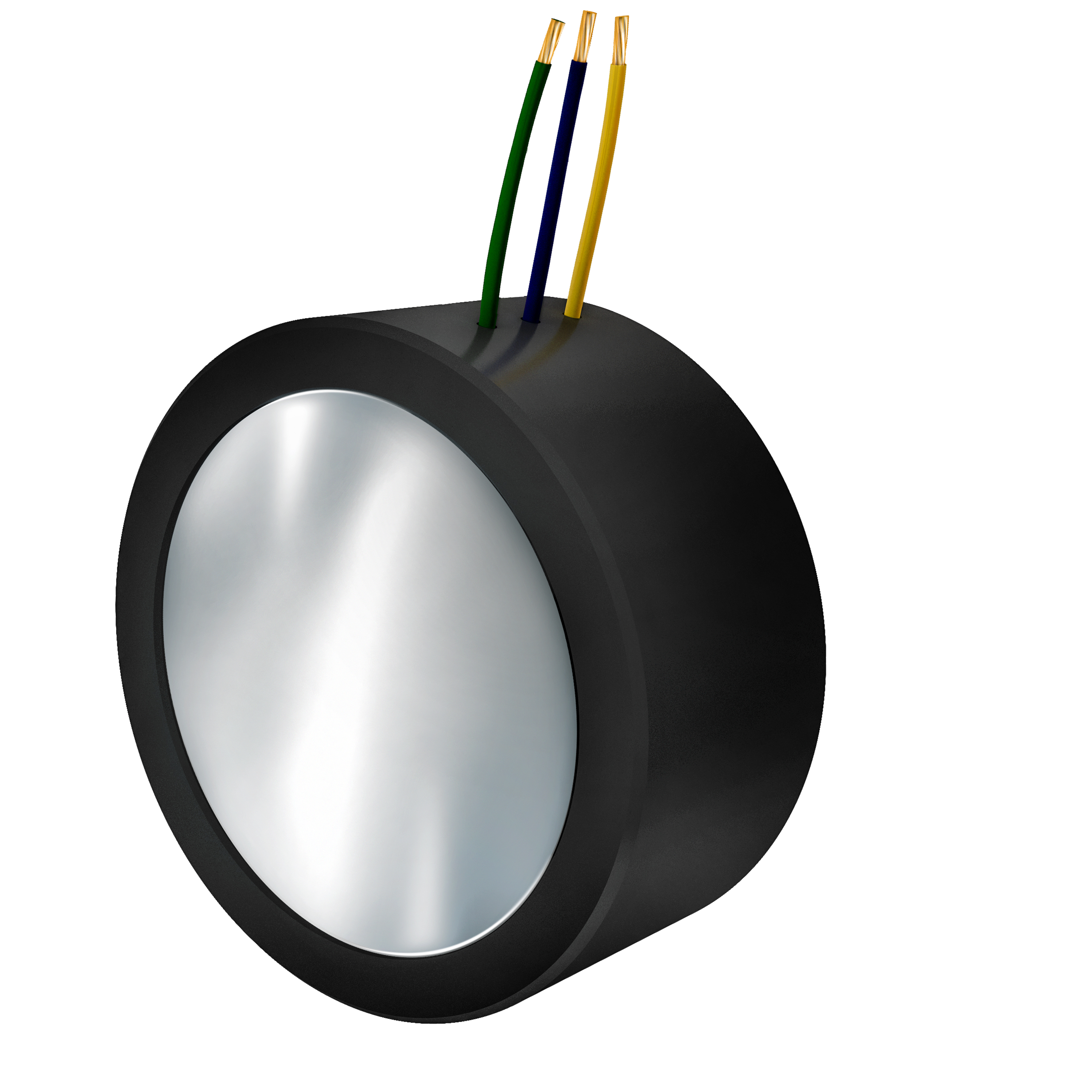

High resolution and excellent dynamic range
With high resolution and excellent dynamic range, these devices are often known as Generation I image intensifiers. Typically they are used in series with other types of intensifiers or used to convert UV or infrared into visible light.
for integration with your camera or as a module
as compared to MCP-based intensifiers
18 mm, 25 mm, 40 mm
Across X-ray, UV, Solar Blind, Visible and NIR
Compact in size and ideal for use in high magnetic field environments
High Speed Intensified Imaging (“Booster” Tube)
Wavelength conversion, from UV or Infrared to Visible (Converter Tube)
With high resolution and excellent dynamic range, image diodes achieve light gain of > 10×. This is achieved without microchannel plate multiplication of electrons, instead utilising a high-voltage electric field.
Image diodes have two primary uses:
“Booster” Tube: Image diodes are often used in conjunction with microchannel plate (MCP) based intensifiers to further increase image brightness.
Converter Tube: the image diode is used to convert non-visible (e.g. ultraviolet) light into visible light.
A range of photocathodes and input window materials enables a wide choice of spectral responses to suit most applications.
The phosphor and output window type can be chosen as to fit with the imaging or observation method.
The table below outlines the Part Number format for our standard product range. To talk further about these products, or the custom design of an image intensifier for your application, then please Contact us.
is a 25mm diameter single MCP image intensifier, with a fused silica input window, S20 photocathode, and P43 phosphor, on a fibre optic output window
TYPE | # of MCPs | Input | Photocathodes | Size | Phosphor | Outut |
ID | (0) | Fibre Optic | Solar Blind | 18 | P43 | G (Glass) |
Fused Silica | Bialkali | 25 | P46 | IFO (Fibre Optic) | ||
S20B | 40 | P47 | ITA (fibre taper) | |||
S20 | (Others upon request) | RS (Resistive Sea Anode) | ||||
S25 |
Type Wavelength (nm) | Photons/Electron @ 5kV | Decay Characteristic |
P20 (540) | 320 | Fast intial decay with long decay at low level. 1ms to 1%. |
P43 (548) | 240 | 1.2 ms/decade, true exponential |
P46 (530) | 55 | 300 ns |
P47 (410) | 64 | 80ns |
Phospher of the Coupled Image Intensifier | Peak Phospher Wavelength | Image Diode Photocathode | Image Diode Phosphor | Typical Image Diode Photon Gain (glass output) | Typical Voltage |
P43 | 548 | S20 | P43 | 102 | +8 kV |
P46 | 530 | S20 | P46 | 27 | +8 kV |
P47 | 410 | S20B | P47 | 65 | +8 kV |
Conversion | Photocathode | Typical Applied Voltage | Quantum Efficiency (QE) | Photon Gain with glass output (at stated wavelength) (W/W) |
(%) (nm) | P20 P43 P46 | |||
Deep UV | SB | +8kV | 30 254 | 365 274 65 |
Broad UV | S20B | +8kV | 28 350 | 342 255 57 |
NIR | S25 | +8kV | 4 800 | 49 38 8 |

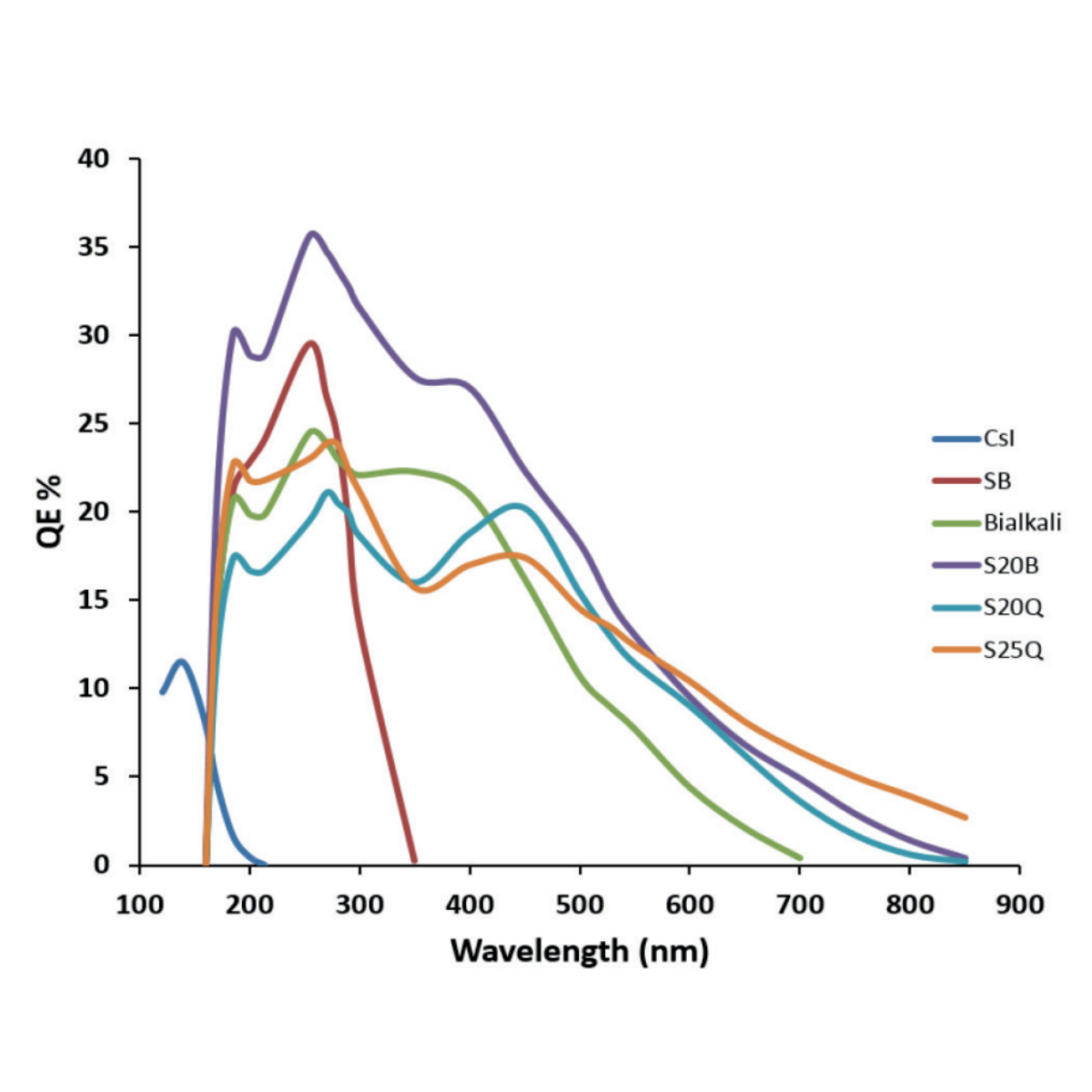

Spectral Response
Typical configuration for an Intensified High Speed Camera.

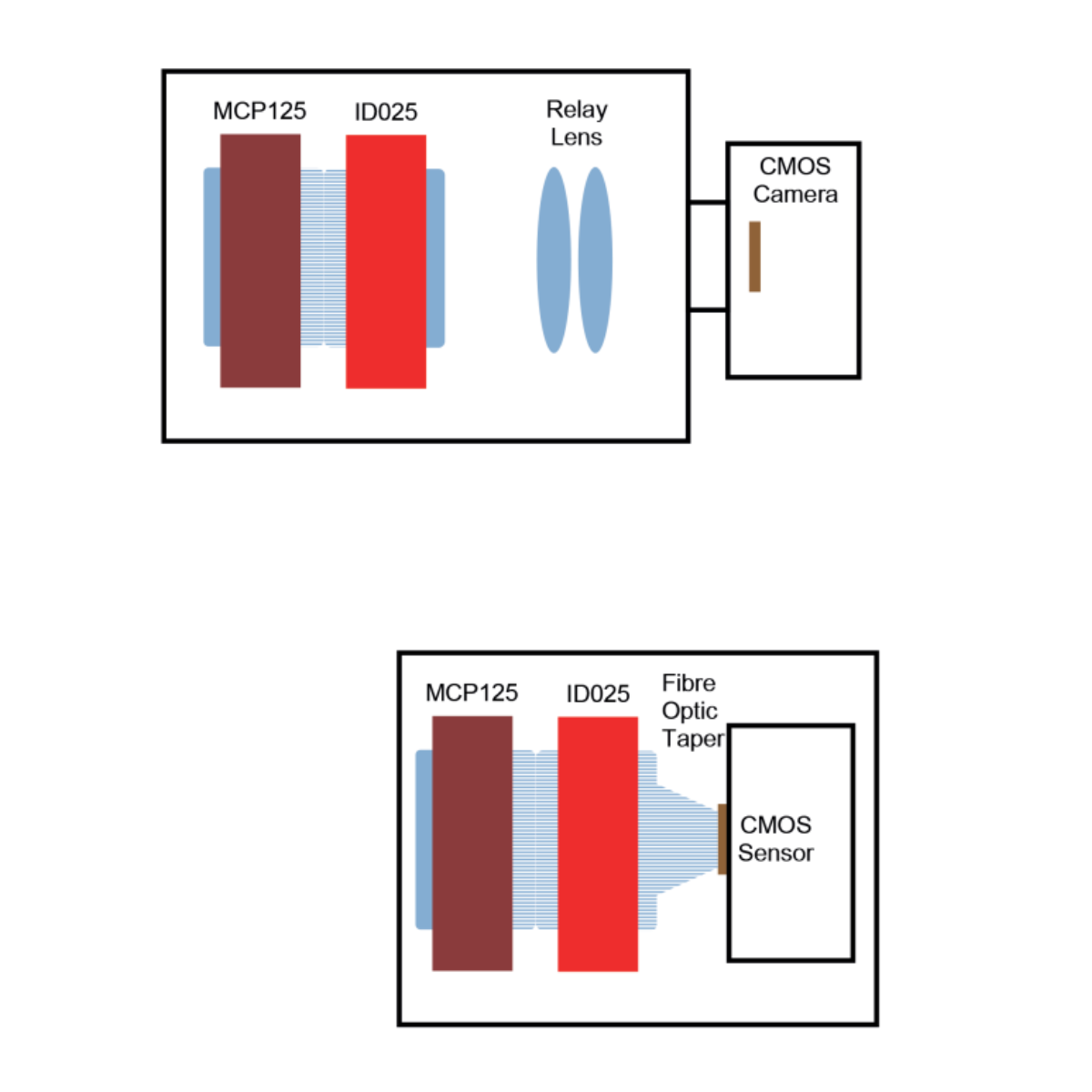

Shown is an MCP125 image intensifier with Fibre Optic output coupled to an ID025 Image Diode having a Fibre Optic input. The MCP125 and ID025 are bonded together providing high optical gain and dynamic range suitable for high speed imaging. A Glass output on the ID025 is coupled to a high speed camera using a relay lens, typically via a lens mount. The camera can be used with or without the intensifiers.
Alternative configuration for an Intensified High Speed Camera.
Shown is an MCP125 image intensifier with fibre optic output coupled to an ID025 Image Diode having both Fibre Optic input and output. The MCP125 and ID025 are bonded together providing high optical gain and dynamic range suitable for high speed imaging. A Fibre Optic is used to couple the output of the ID025 to a high speed CMOS sensor resulting in a compact but permanent solution.
Typical configuration for a direct view Image Converter.

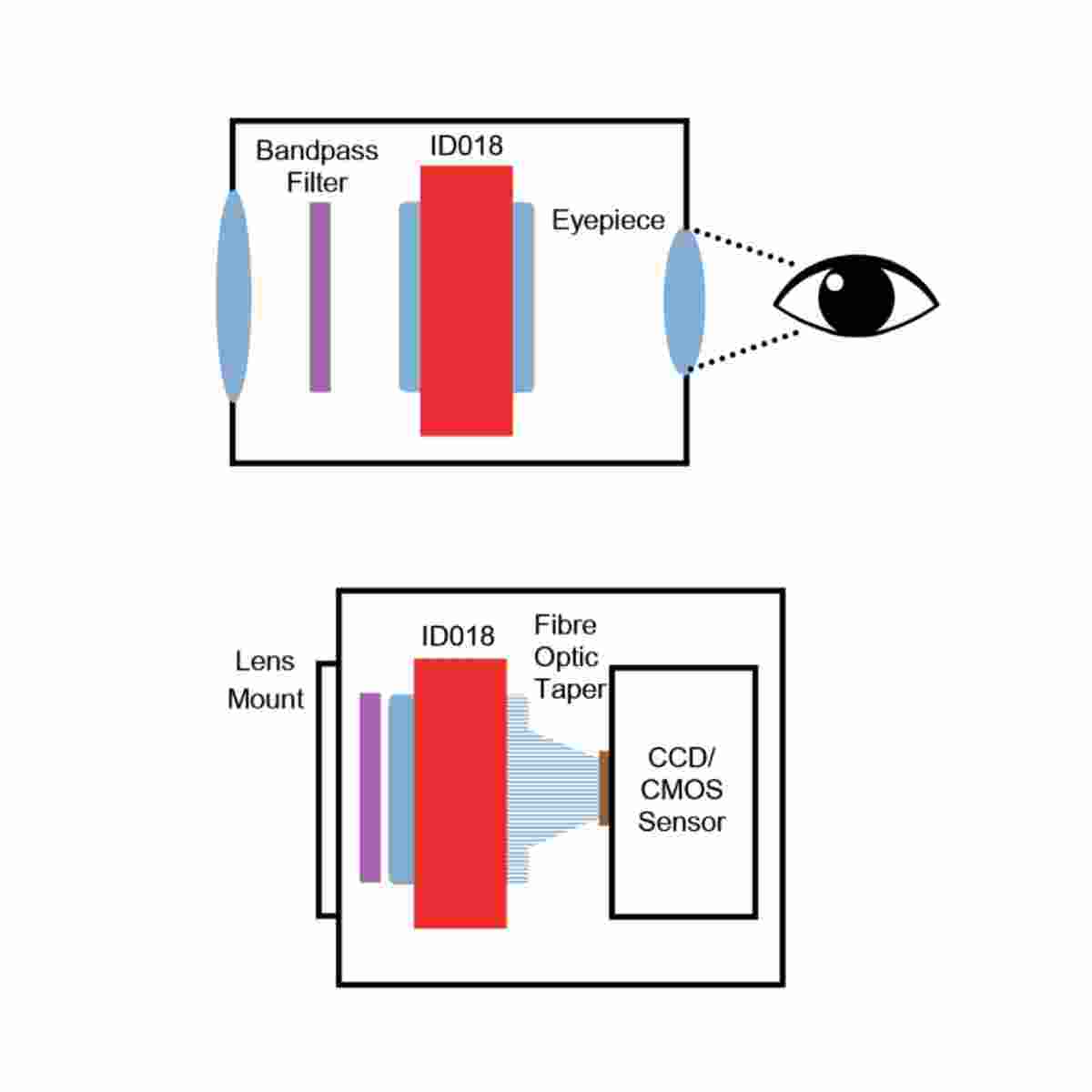

Shown is an ID018 Image Diode with glass input and output optics. The Image Diode converts either Ultraviolet or Near Infrared to visible wavelengths for viewing by eye. Often a bandpass filter is used to reject light at wavelengths that are not of interest.
Alternative configuration for an Image Converter with integral CCD/CMOS camera for applications where direct viewing is not required.
Shown is an ID018 Image Diode having a Glass input and Fibre Optic output. A Fibre Optic taper is used to couple the output of the ID018 to a CCD/CMOS sensor resulting in a compact digital output image converter.
