Features
Customised
for specific applications and effortless integration
Proximity focused
providing low distortion
Range of active diameter sizes
18 mm, 25 mm, 40 mm, 75 mm & 150 mm the world’s largest image intensifier
Range of MCP options
Single, chevron or z-stack
Wide choice of spectral response
Across X-ray, UV, Solar Blind, Visible and NIR
Fast gating
Allows for optical shuttering with gating to 2 ns
Capability/Adaptability
Compact in size and ideal for use in high magnetic field environments
Applications
Bioluminescence
Corona imaging
Fluorescence lifetime imaging
High speed imaging
Low light level imaging
Missile warning systems
Photon counting
Security detection systems
Space science
Spectroscopy
Threat detection systems
Time resolved imaging

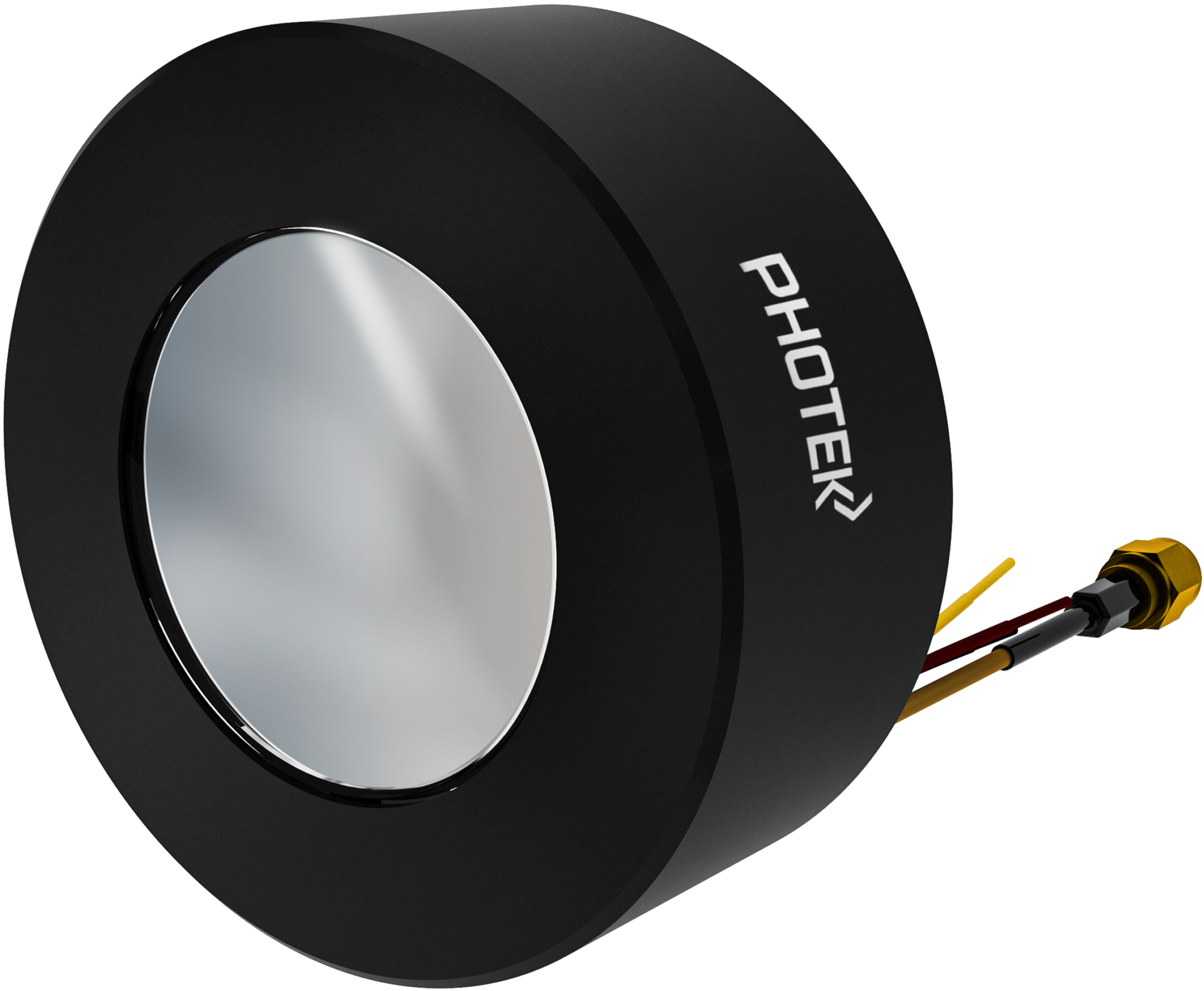

Product Overview
Our Image Intensifiers provide the highest performance in terms of resolution, speed of response and in-service reliability to deliver photonic measurements for world-class scientific research.
Photek Image Intensifiers are available in a wide range of sizes and can be supplied with integral high voltage power supplies and ultra-high speed gate units customised to meet the requirements of a specific application.
A range of photocathodes and input window materials enables a wide choice of spectral responses to suit most applications.
The standard fibre optic output ensures a defined output focal plane and allows efficient coupling to CCDs and linear image sensors. A variety of MCP configurations satisfies all gain requirements.
Product Range
The table below outlines the Part Number format for our standard product range. To talk further about these products, or the custom design of an image intensifier for your application, then please Contact us.
is a 25mm diameter single MCP image intensifier, with a fused silica input window, S20 photocathode, and P43 phosphor, on a fibre optic output window
MCP | Size | Input | Cathode | Phosphor | Outut |
1 | 18 | F (Fibre) | Csl | P20 | IFO (Fibre Optic) |
2 | 25 | Q (Fused Silica) | SB | P43 | FL (glass) |
3 | 40 | G (glass) | BI | P46 | ITA (fibre taper) |
75 | M (MGF2) | S20B | P47 | ||
150 | S (Sapphire) | S20 | FS | ||
S25 |
Specifications
Photocathode | Spectral Range (nm) | Peak Wavelength (nm) | QE Quantum | Gγ Photon Gain 3 (ph/ph) EBI 4 | EBI 4 ph/cm2s lux | ||
S20 | 175 – 800 | 440 | 20 | 1 MCP 2 MCP | 1 x 10 4 2 x 10 6 | 2000 | 2 x 10 -7 |
S20B | 175 – 800 | 260 | 35 | 1 MCP 2 MCP | 2 x 10 4 4 x 10 6 | 5000 | 2 x 10 -7 |
Bi-alkali | 175 – 700 | 350 | 22 | 1 MCP 2 MCP | 1 x 10 4 3 x 10 6 | 50 | 2 x 10 -7 |
S25 | 175 – 950 | 460 | 17 | 1 MCP 2 MCP | 1 x 10 4 2 x 10 6 | 20,000 | 2 x 10 -7 |
Solar Blind | 175 – 340 | 260 | 30 | 1 MCP 2 MCP | 2 x 10 4 3 x 10 6 | 5 | n/a |
CsI | 115 – 200 | 130 | 10 | 1 MCP 2 MCP | 7 x 10 3 1 x 10 6 | 5 | n/a |
Diameter (mm) | Active area (cm2) | Typical Limiting Resolution (Ip/mm) Single MCP Dual MCP | |
18 | 2.54 | 50 | 25 |
25 | 4.91 | 45 | 23 |
40 | 12.6 | 33 | 20 |
75 | 44.2 | 16 | 14 |
150 | 177 | 10 | 6 |
Minimum Gate Width | Transmission Loss | Notes |
500 | 0 | Standard |
50 | ~10% | 200 nm – 900 nm |
10 | ~30% | 200 nm – 900 nm |
< 1 | ~10% | 350 nm – 900 nm TCU |
3 | ~40% | 200 nm – 900 nm |
< 3 | 19% | Fine Mesh |

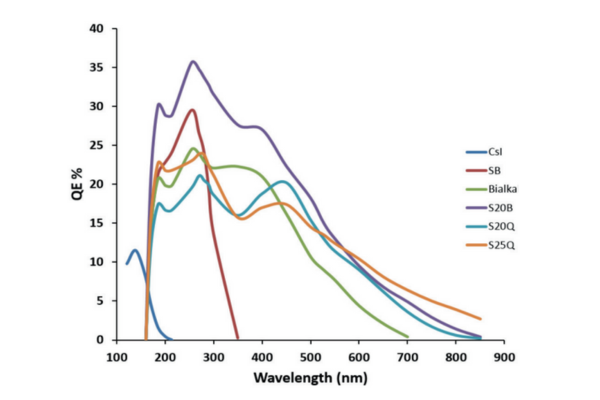

Spectral Response
Transmission of input windows
