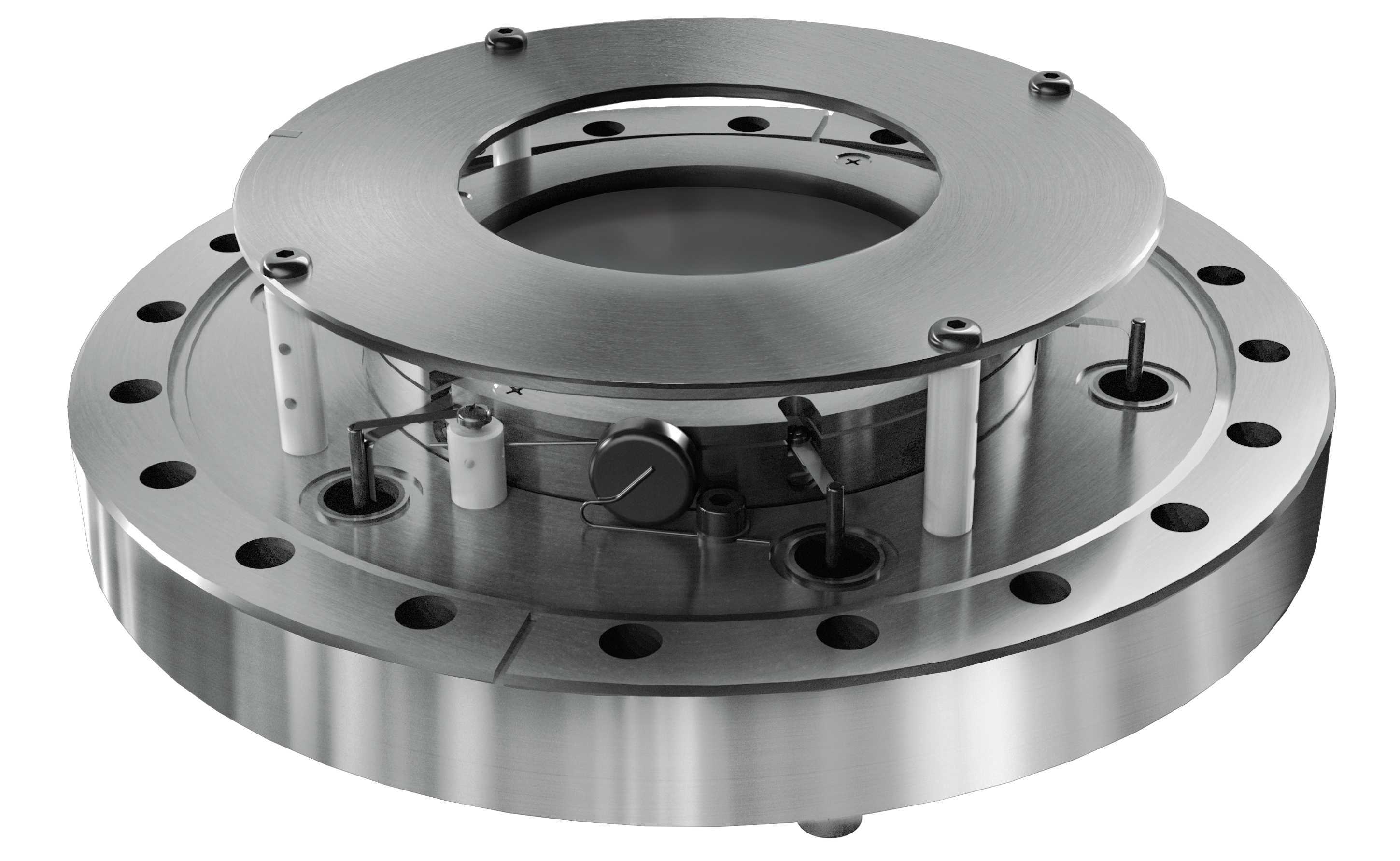

Features
Custom
CAD designed for each application
High temporal resolution
Fast MCP gating options
down to 8 ns
Range of coating options
to enhance Quantum Efficiency
Range of Sizes
18, 25, 40 and 75 mm active diameter
Wide choice
of flange size and type, or unmounted
Range of Anode Options
Single or multi-anode arrays
Applications
Synchrotron Radiation
VUV spectroscopy
Product Range
TYPE | # of MCPs | Size | Phosphor | Output |
VPMT | 1 | 10 | P43 | Single Anode |
2 | 18 | P46 | RS (Resistive Sea Anode) | |
3 | 25 | P47 | ||
40 | (Others upon request) | |||
75 |
Specifications
Type (Colour) | Screen efficiency % (Optical Watts / Electrical Watt) | Peak | Photons / Electron @ 5 kV | Decay Characteristic | Decay Curve |
P11 (Blue) | 5.9 | 446 | 120 | Fast initial decay with long decay at low level. | |
P20 (Green) Fast | 12 | 540 | 320 | Fast initial decay with long decay at low level. | |
P24 (Blue) | 5.0 | 500 | 120 | 10 ms to 10% | |
P31 (Green) | – | 550 | – | 1 ms, good exponential | |
P43 (Green) | 8.7 | 548 | 240 | 1.2 ms/decade, true exponential | |
P46 (Green) | 1.8 | 530 | 55 | 300 ns | |
P47 (Blue) | 3 | 410 | 64 | 80 ns | |
FS | 4.2 | 513 668 768 | 96 | 12 us to 10 % | |
GOS | 0.7 | 420 | – | 50 ns to 10 % | 110 ns to 1 % |
Range Size | Detectors | ||||||||
Nominal OO/ID | VID-12 | VID-18 | VID-25 | VID-40 | VID-75 | VPM-6 | VPM-12 | VPM-25 | VPM-40 |
CF36 70mm/35mm | S | S | N | N | N | S | N | N | N |
CF63 114mm/63mm | O | S | S | N | N | O | S | N | N |
CF100 152mm/100mm | O | O | O | S | N | O | O | S | N |
CF150 203mm/150mm | O | O | O | O | S | O | O | O | S |
CF200 254mm/200mm | O | O | O | O | O | O | O | O | O |
CF250 304mm/250mm | O | O | O | O | O | O | O | O | O |
S – Standard Configuration | O – Optional Configuration | N- Not Available | |||||||||
Spectral responses of available photocathodes. Note that the underlay on the cathode can affect the QE.
Transmission of input windows
Documentation
Datasheet
User manual
