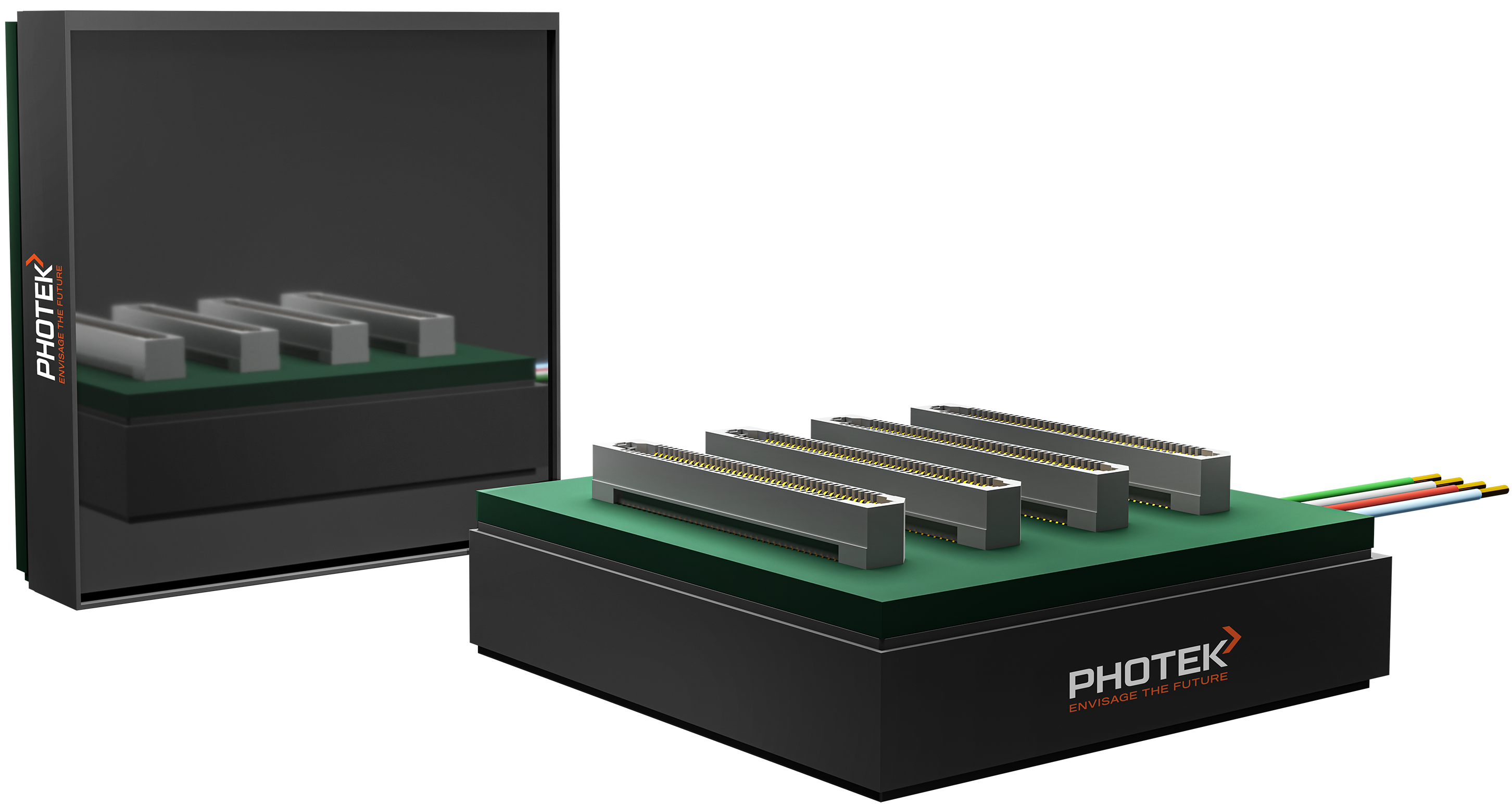

Features
High open area ratio square envelope
for tiling larger areas

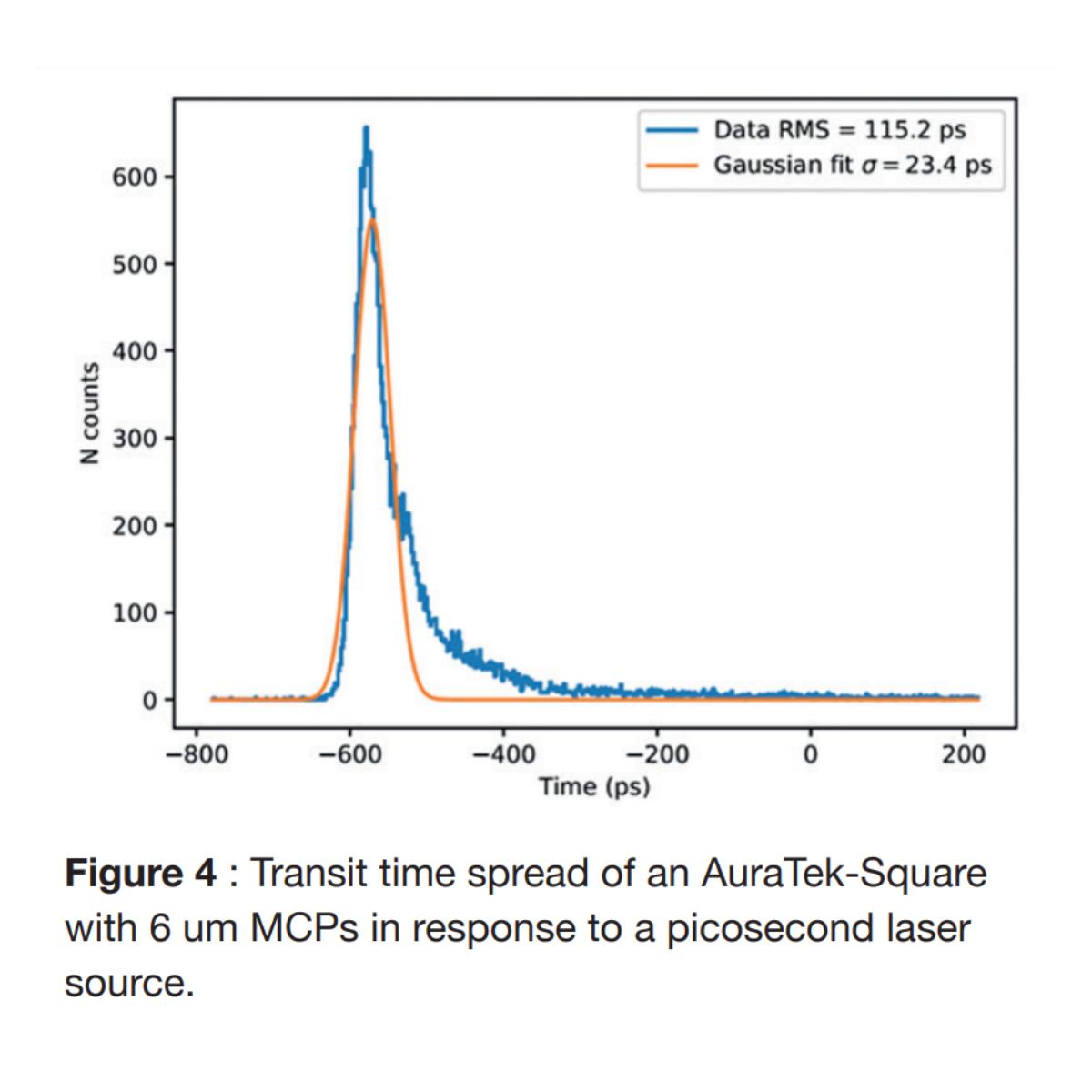

Single Photon Transit Time Spread to < 50 ps FWHM
providing the precise wide field Time Correlated Single Photon Counting
Native 64 x 64 anodes on 0.828 mm pitch
can be configured into macro anodes to match user requirements
Three standard anode configurations with connectors
to provide ease of use
Excellent immunity to magnetic fields
enable use in Physics experiments with high magnetic fields
ALD functionalized MCPs
for long lifetime and improved collection efficiency
Applications
Ring Imaging Cherenkov (RICH)
Detection of Internally Reflected Cherenkov (DIRC)
Sampling Calorimeter Readout
Scintillating/Cherenkov Fibre Readout
Time-of-Flight Positron Emission Tomography
Beam Monitor
High Content Screening
Time Resolved Spectroscopy
LiDAR
Standoff Chemical/Biological Detection
Product Overview
General Characteristics | |
Window | Fused Silica (Optical Fibre Optic/Sapphire/MgF2) |
Active Area | 53 x 53 mm |
Eelectron Multiplier | Dual MCP |
Anode Formats | 64 x 64 on 0.828 mm pitch 32 x 32 on 1.656 mm pitch 16 x 16 on 3.312 mm pitch 8 x 8 on 6.624 mm pitch |

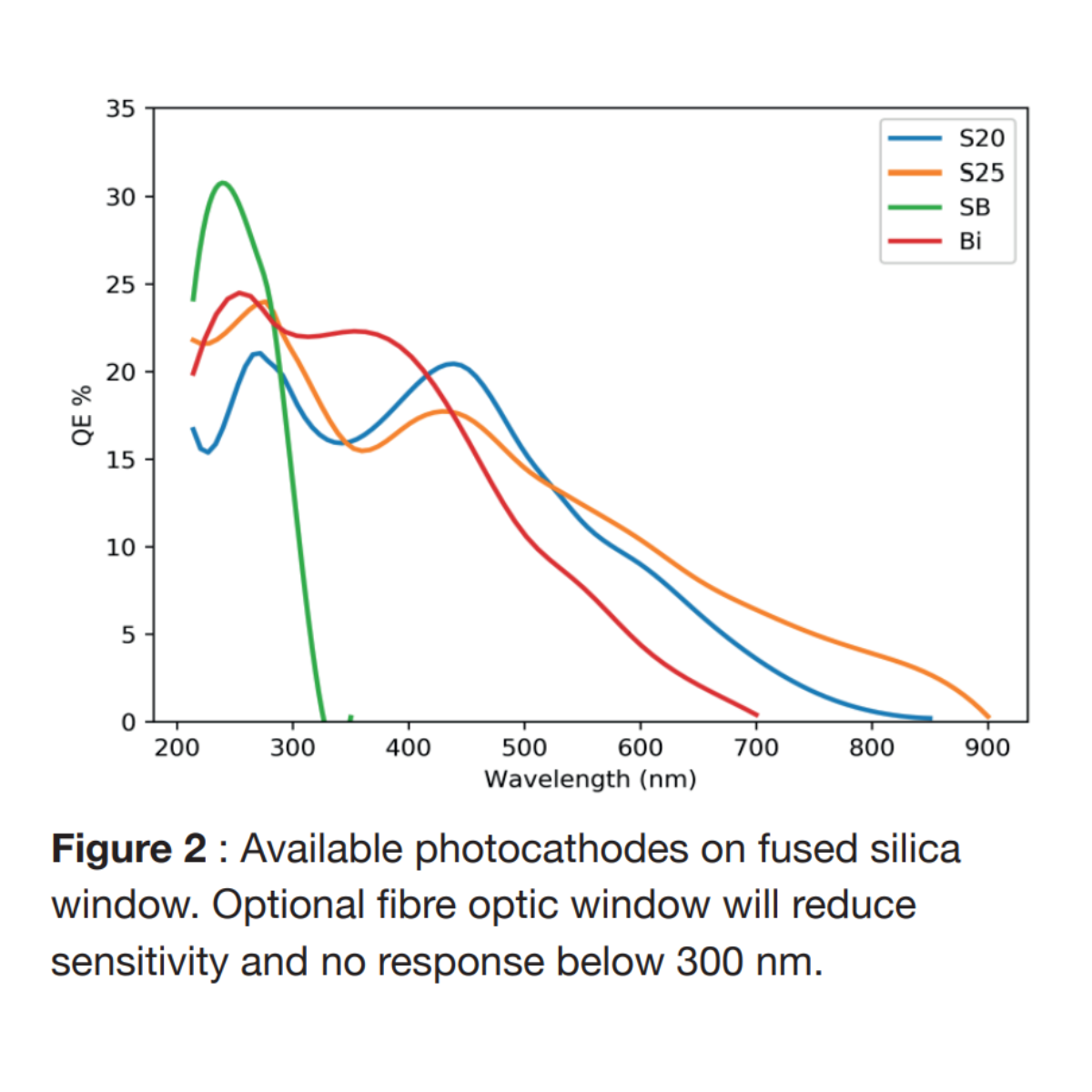

Photocathode | Solar Blind, Bi-Alkali, S20, S25, CsI |
Product Range
Ask our technical team for assistance determining the best anode configuration and to discuss readout options.
Specifications
Single Photon Response (typical) | 15 um MCP | 6 um MCP |
Window | 330 ps | 300 ps |
Active Area | 860 ps FWHM | 800 ps FWHM |
Eelectron Multiplier | < 40 ps RMS | < 25 ps RMS |
Anode Formats | 100% FWHM | 100% FWHM |
Photocathode | Up to 10 MHz | Up to 10 MHz |
Maximun Ratings | ||
Overall Voltage | <3500 V | |
Operating Temperature | -50°C to + 50°C | |
Storage Temperature | -50°C to + 50°C | |
