Features
Optimised anode assembly
provides ultra fast response down to 50 ps risetime
Range of active diameters available
10 mm, 25 mm and 40 mm
No internal gain mechanism
enables very wide dynamic range
Available with conductive photocathode undercoating
for increased large signal linearity
Applications
- Inertial Confinement Fusion Diagnostics
- Analysis of fast optical pulses
- Particle & Nuclear physics
- Ultrafast laser diagnostics
Overview

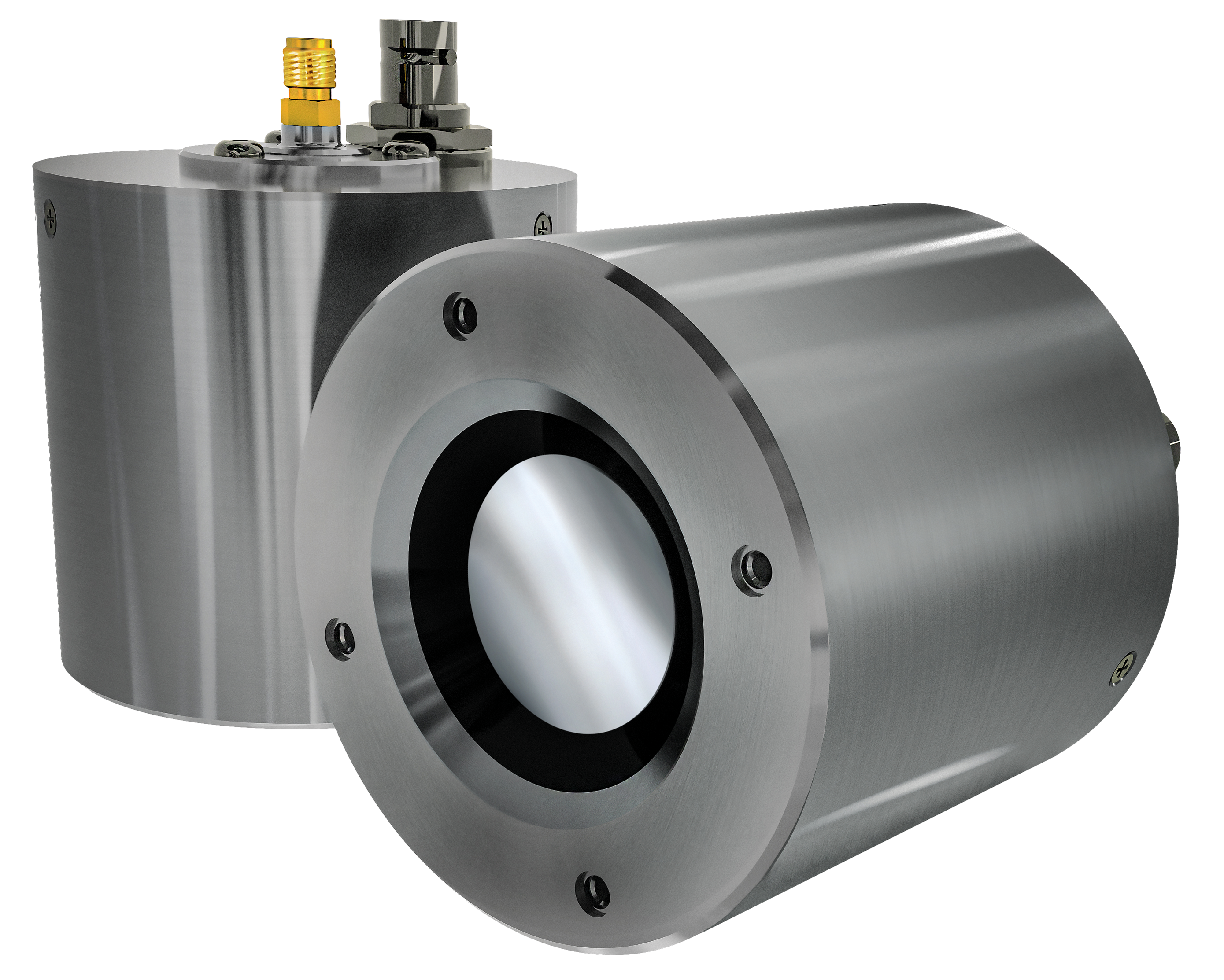

The vacuum photodiode is a sealed vacuum tube with a much faster response than solid state photodiodes.
Vacuum Photodiodes do not contain the MicroChannel Plate electron multipliers used in our Photomultiplier Tubes, resulting in unity gain devices. A benefit of this is the vacuum photodiode’s high dynamic range, enabling measurement of extremely high light signals without degradation.
Range
The table below outlines the Part Number format for our standard product range. To talk further about these products, or the custom design of an image intensifier for your application, then please Contact us.
Example: MCP125/Q/S20/P43/IFO
is a 25mm diameter single MCP image intensifier, with a
fused silica input window, S20 photocathode, and P43
phosphor, on a fibre optic output window
TYPE | MCP | Active Diameter (mm) | Input Window | Photocathode | Extended Dynamic Range Underlayer | |
PD | 0 | 10 | Q (fused silica) | CsI | M (Mesh) | |
25 | M (MgF2) | SB | TCU | |||
40 | BI | |||||
S20B | ||||||
S20 | ||||||
S25 | ||||||
Specifications
Pulse Rise Time | ||||
Diameter (mm) | Minimun (ps) | Typical (ps) | Maximum (ps) | |
10 | 36 | 50 | 60 | |
25 | 60 | 80 | 100 | |
40 | 60 | 80 | 100 | |
Pulse FWHM | ||||
Diameter (mm) | Minimun (ps) | Typical (ps) | Maximum (ps) | |
10 | 55 | 60 | 100 | |
25 | 100 | 150 | 200 | |
40 | 100 | 150 | 200 | |

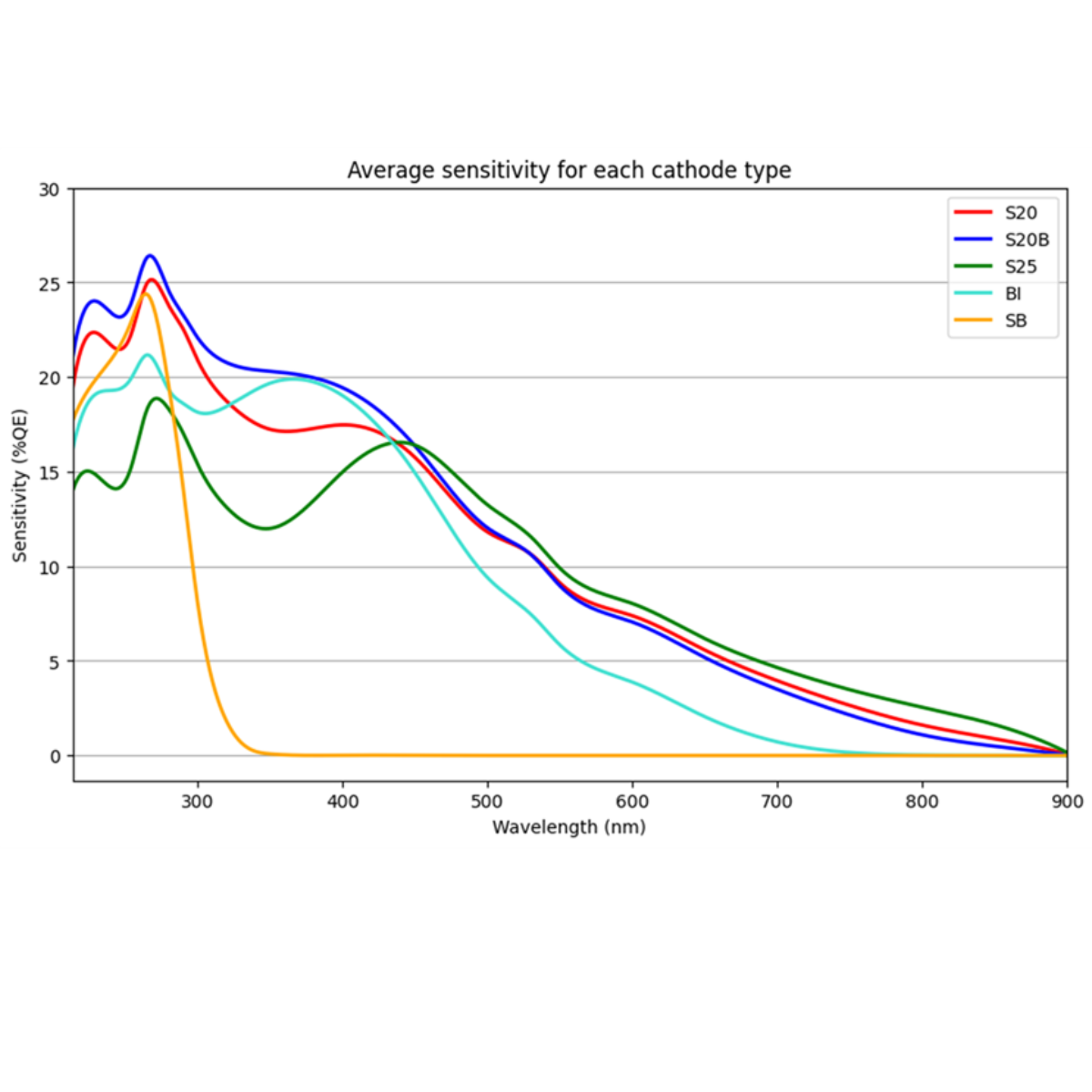

Spectral Response

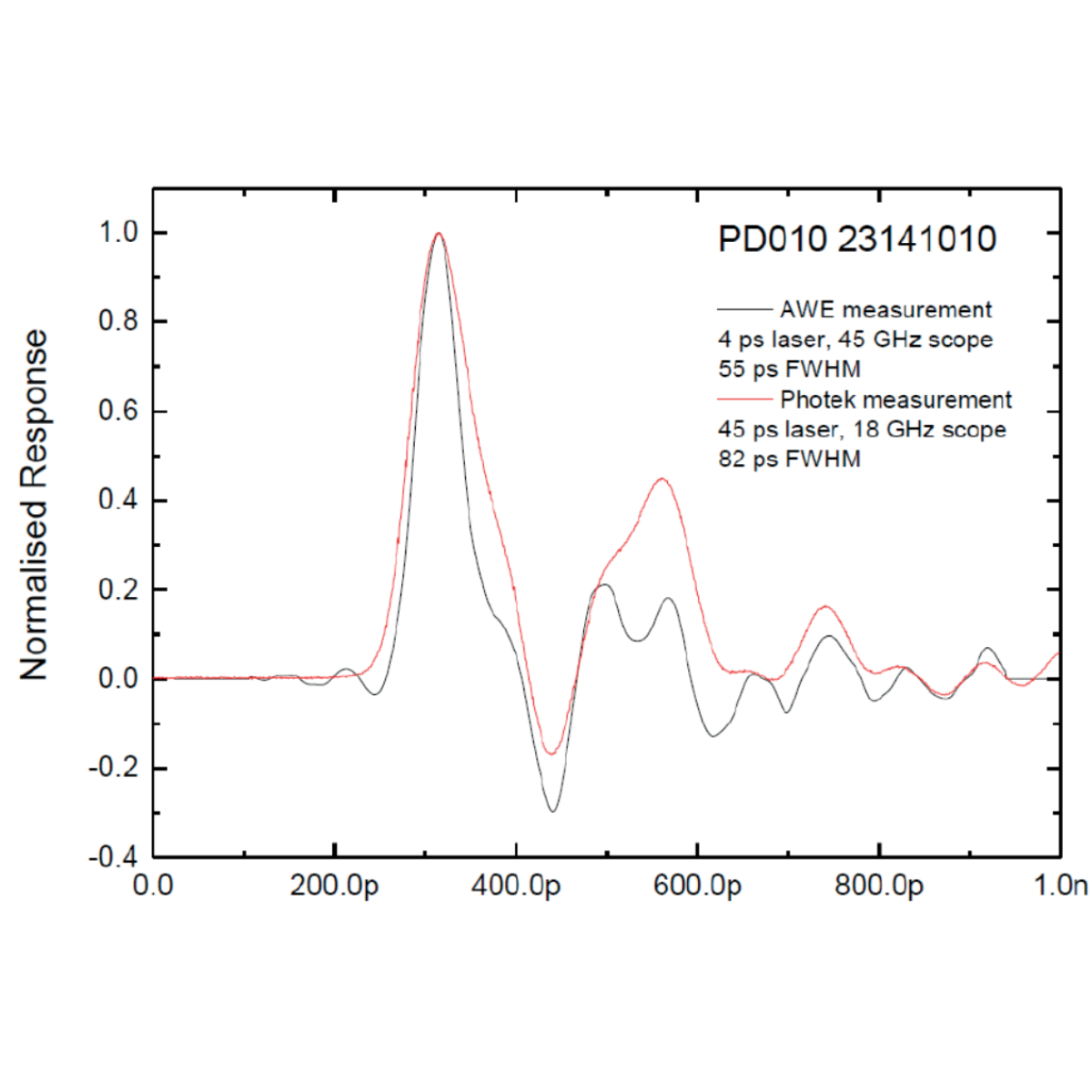

Normalised Response
