Product Overview

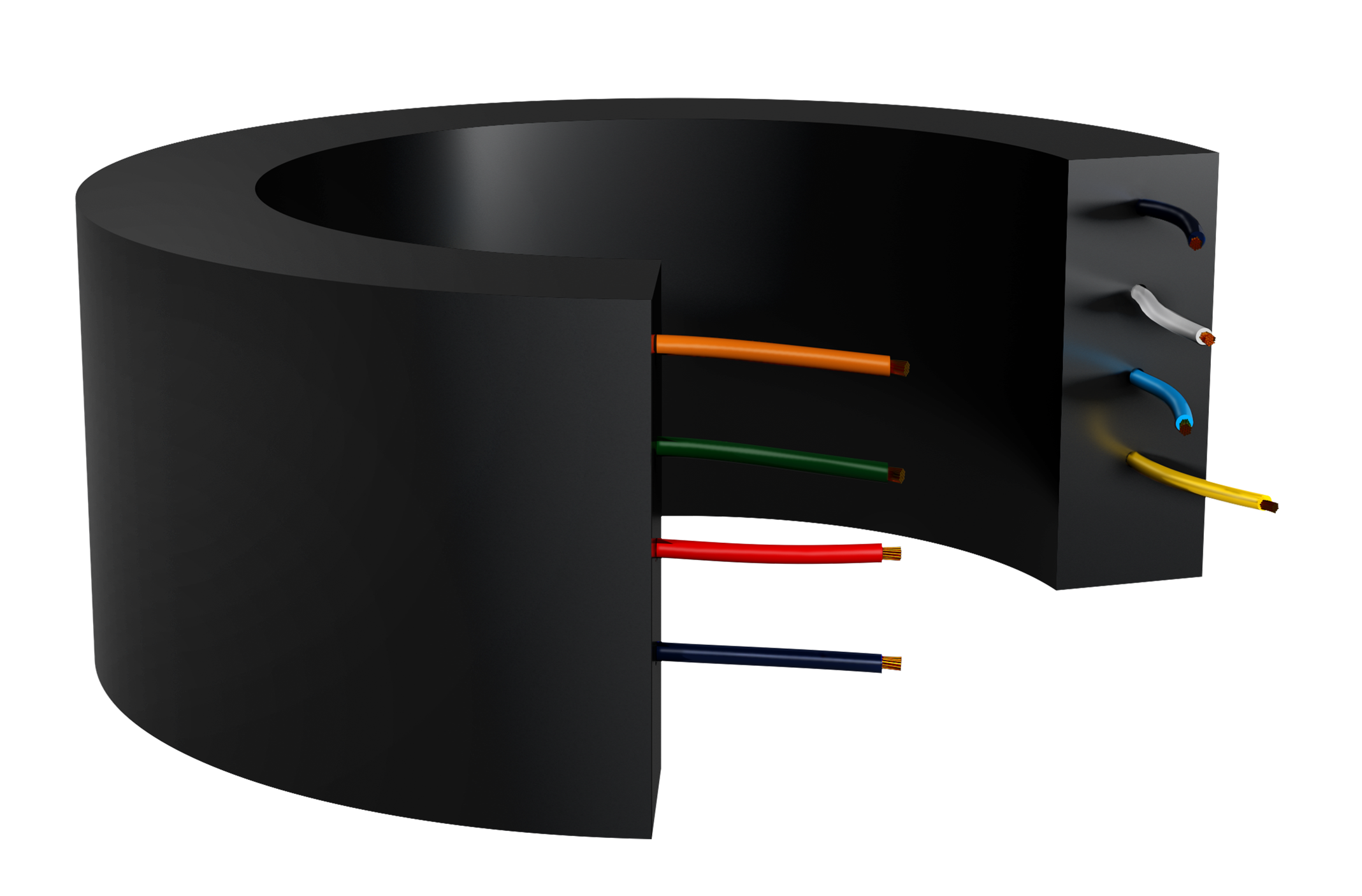

This family of wrap-around power supplies are ideal for Image Intensifier applications requiring a compact, all-in-one packaging solution.

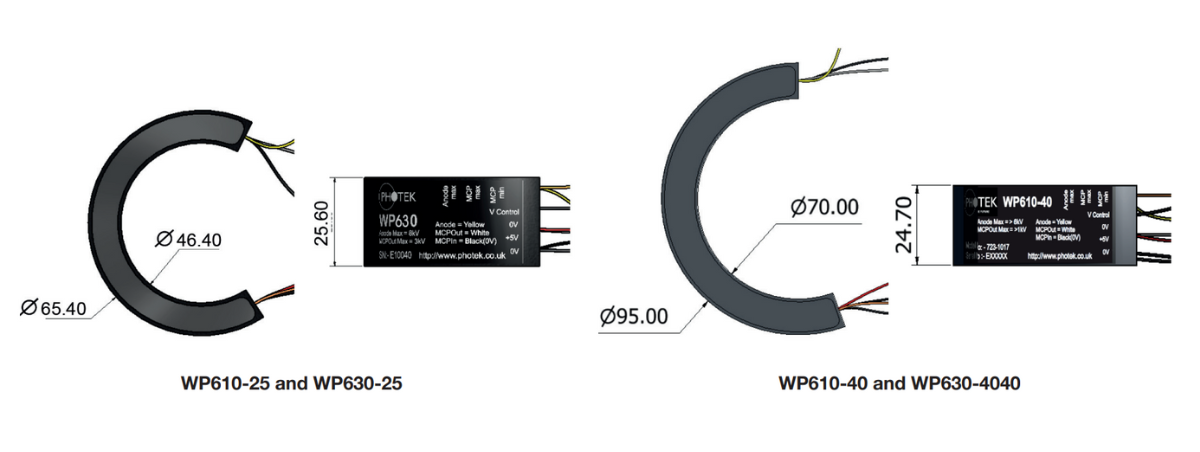

Only MCP and Anode voltages are supplied in a case that conforms to the outside diameter of the image intensifier, 25mm and 40mm options. The MCP voltage can be remotely adjusted using a separate 0 to 5V input. Adjustment pots are provided to set the minimum and maximum MCP voltages and to adjust the Anode voltage to a fixed value over its 1000V to 6000V range. The WP610 variants support Image Intensifiers with a single MCP while the WP630 variants can be used for Intensifiers with up to 3 MCPs.
The cathode voltage is supplied by one of Photek’s Gate modules. Additional voltage options are available upon request. All wrap-around power supplies are designed to be potted around the intensifier.
Contact Photek for these and other customised solutions.
Specifications
Specifications | WP610-25 | WP610-40 | WP630-25 | WP630-40 |
MCP’s | 1 | 1 | 2-3 | 2-3 |
MCP In Voltage | 0V | 0V | 0V | 0V |
MCP Out Voltage | 100 – 1000 V | 100 – 1000 V | 100 – 2800 V | 100 – 2800 V |
MCP Load (min) | 10 MΩ | 10 MΩ | 50 MΩ | 50 MΩ |
Anode Voltage | 1000 – 6000 V | 1000 – 6000 V | 1000 – 6000 V | 1000 – 6000 V |
Anode Current (max) | 1 μA | 1 μA | 1 μA | 1 μA |
Current Monitor Output | Yes | Yes | No | No |
Supply Current | 5V DC ±5% | 5V DC ±5% | 5V DC ±5% | 5V DC ±5% |
Length x Height x Width | 90 x 40 x 20 mm | 90 x 40 x 20 mm | 90 x 40 x 20 mm | 90 x 40 x 20 mm |
Weight | < 90 g | < 90 g | < 90 g | < 90 g |
Operating Temperature Range | 0ºC – 50ºC | 0ºC – 50ºC | 0ºC – 50ºC | 0ºC – 50ºC |
